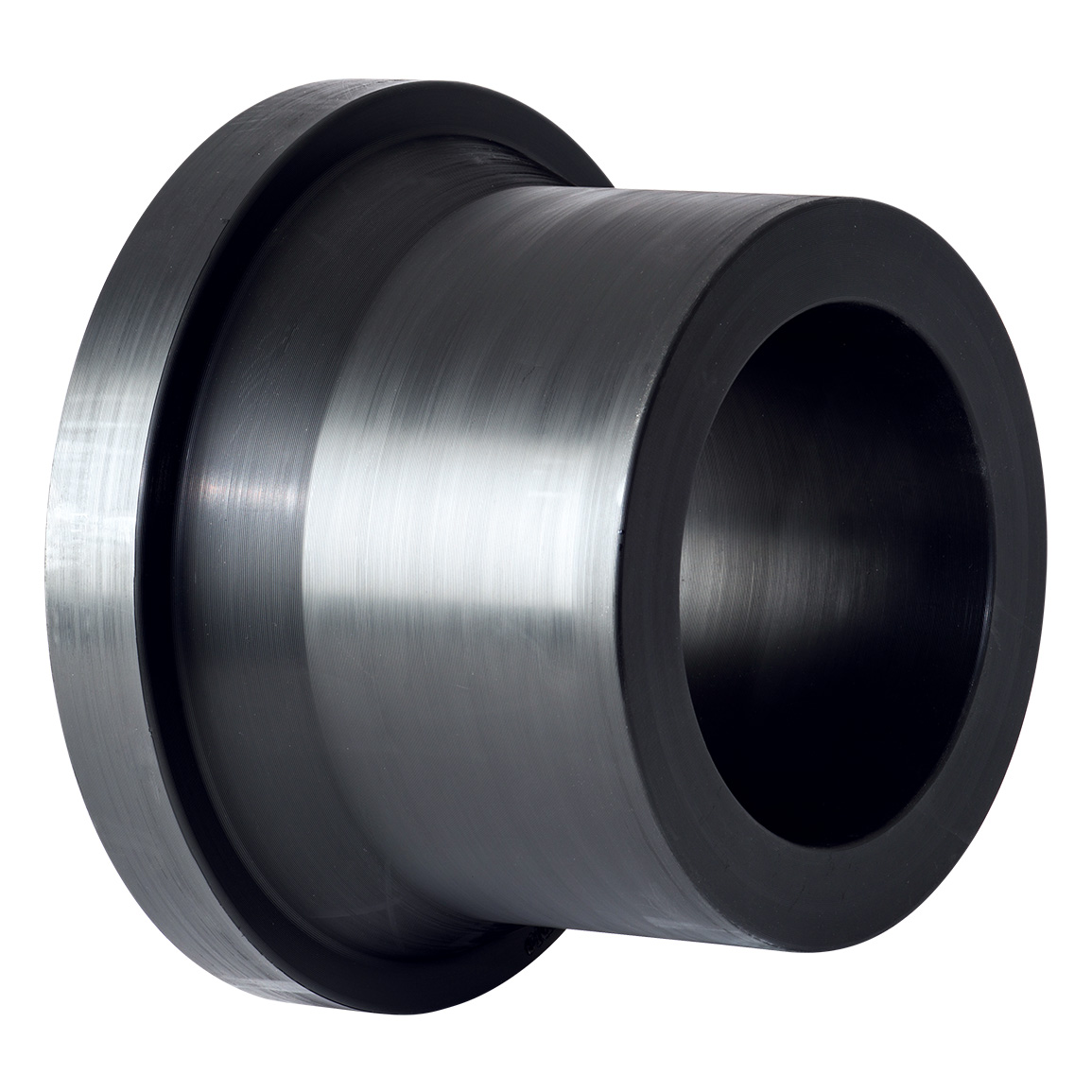

High Pressure PN25 Moulded Long Spigot Stub Flanges
PE100
SDR7.4
PN25
High Pressure PN25 Moulded Long Spigot Stub Flanges
- PE100
- SDR7.4
- PN25
Product variant details
| Qty In Quote | Size D (mm) | Code | D2 (mm) | Z (mm) | L (mm) | L1 (mm) |
|---|---|---|---|---|---|---|
| 280 | LSSF28074 | 320 | 210 | 140 | 40 | |
| 315 | LSSF31574 | 370 | 230 | 150 | 40 | |
| 355 | LSSF35574 | 430 | 250 | 165 | 45 | |
| 400 | LSSF40074 | 482 | 270 | 180 | 50 | |
| 25 | LSSF2574 | 58 | 69 | 46 | 10 | |
| 32 | LSSF3274 | 68 | 80 | 56 | 11 | |
| 40 | LSSF4074 | 78 | 84 | 57 | 12 | |
| 50 | LSSF5074 | 88 | 85 | 57 | 13 | |
| 63 | LSSF6374 | 102 | 101 | 63 | 18 | |
| 75 | LSSF7574 | 138 | 112 | 73 | 19 | |
| 90 | LSSF9074 | 138 | 122 | 82 | 20 | |
| 110 | LSSF11074 | 158 | 138 | 91 | 22 | |
| 125 | LSSF12574 | 158 | 149 | 101 | 28 | |
| 140 | LSSF14074 | 188 | 160 | 102 | 30 | |
| 160 | LSSF16074 | 212 | 164 | 106 | 30 | |
| 180 | LSSF18074 | 212 | 172 | 108 | 34 | |
| 200 | LSSF20074 | 268 | 195 | 119 | 36 | |
| 225 | LSSF22574 | 268 | 186 | 120 | 36 | |
| 250 | LSSF25074 | 320 | 210 | 130 | 40 |
