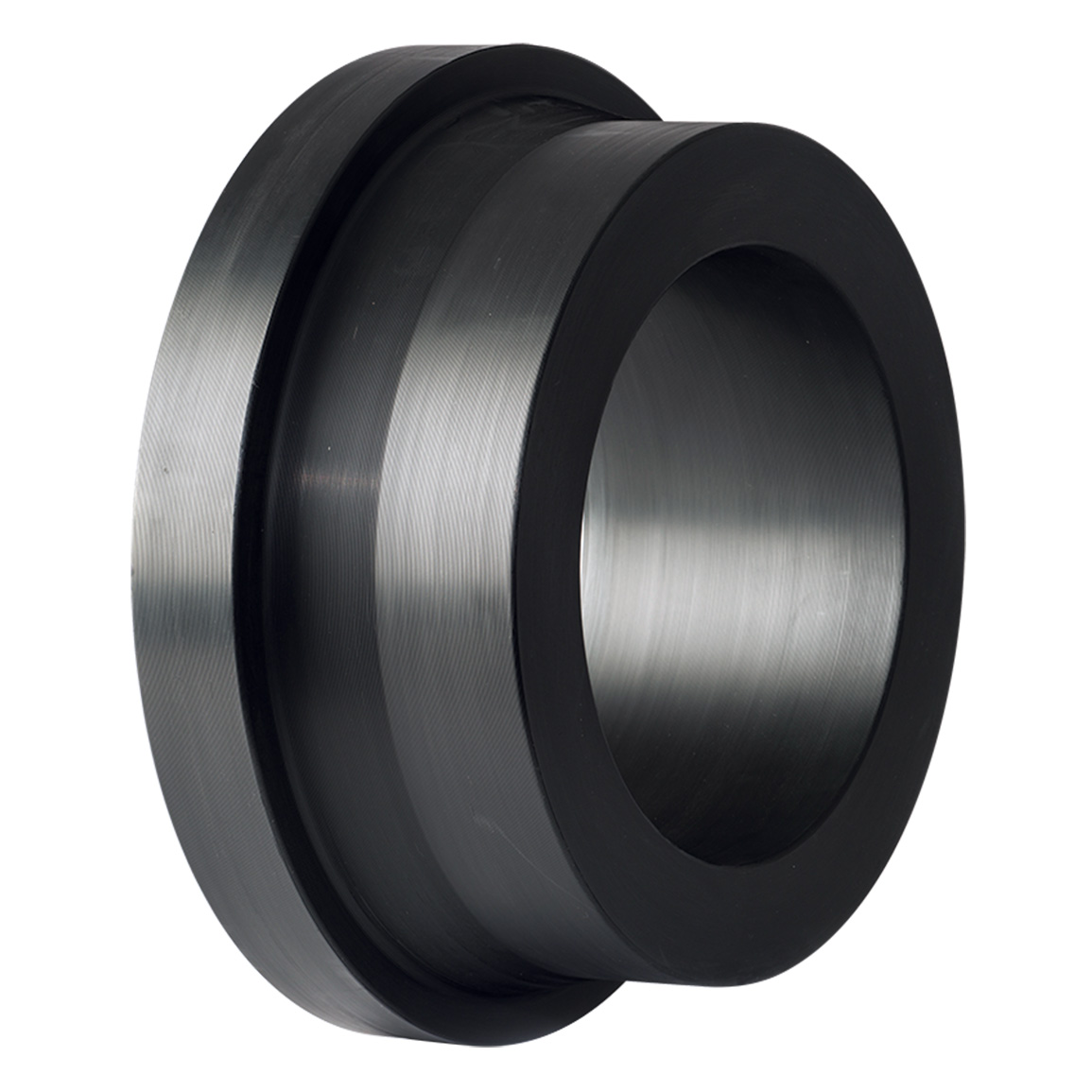

High Pressure PN25 Buttweld Stub Flanges
PE100
SDR7.4
PN25
High Pressure PN25 Buttweld Stub Flanges
- PE100
- SDR7.4
- PN25
Product variant details
| Qty In Quote | Size OD (mm) | Code | D (mm) | A (mm) | B (mm) |
|---|---|---|---|---|---|
| 63 | SF6374 | 102 | 18 | 38 | |
| 75 | SF7574 | 122 | 16 | 36 | |
| 90 | SF9074 | 138 | 18 | 38 | |
| 110 | SF11074 | 158 | 20 | 45 | |
| 125 | SF12574 | 158 | 28 | 48 | |
| 140 | SF14074 | 188 | 29 | 57 | |
| 160 | SF16074 | 212 | 29 | 57 | |
| 180 | SF18074 | 212 | 34 | 64 | |
| 200 | SF20074 | 268 | 36 | 76 | |
| 225 | SF22574 | 268 | 36 | 66 | |
| 250 | SF25074 | 320 | 40 | 80 | |
| 280 | SF28074 | 320 | 40 | 70 | |
| 315 | SF31574 | 370 | 40 | 80 | |
| 355 | SF35574 | 430 | 45 | 85 | |
| 400 | SF40074 | 482 | 50 | 95 | |
| 450 | SF45074 | 585 | - | - |
