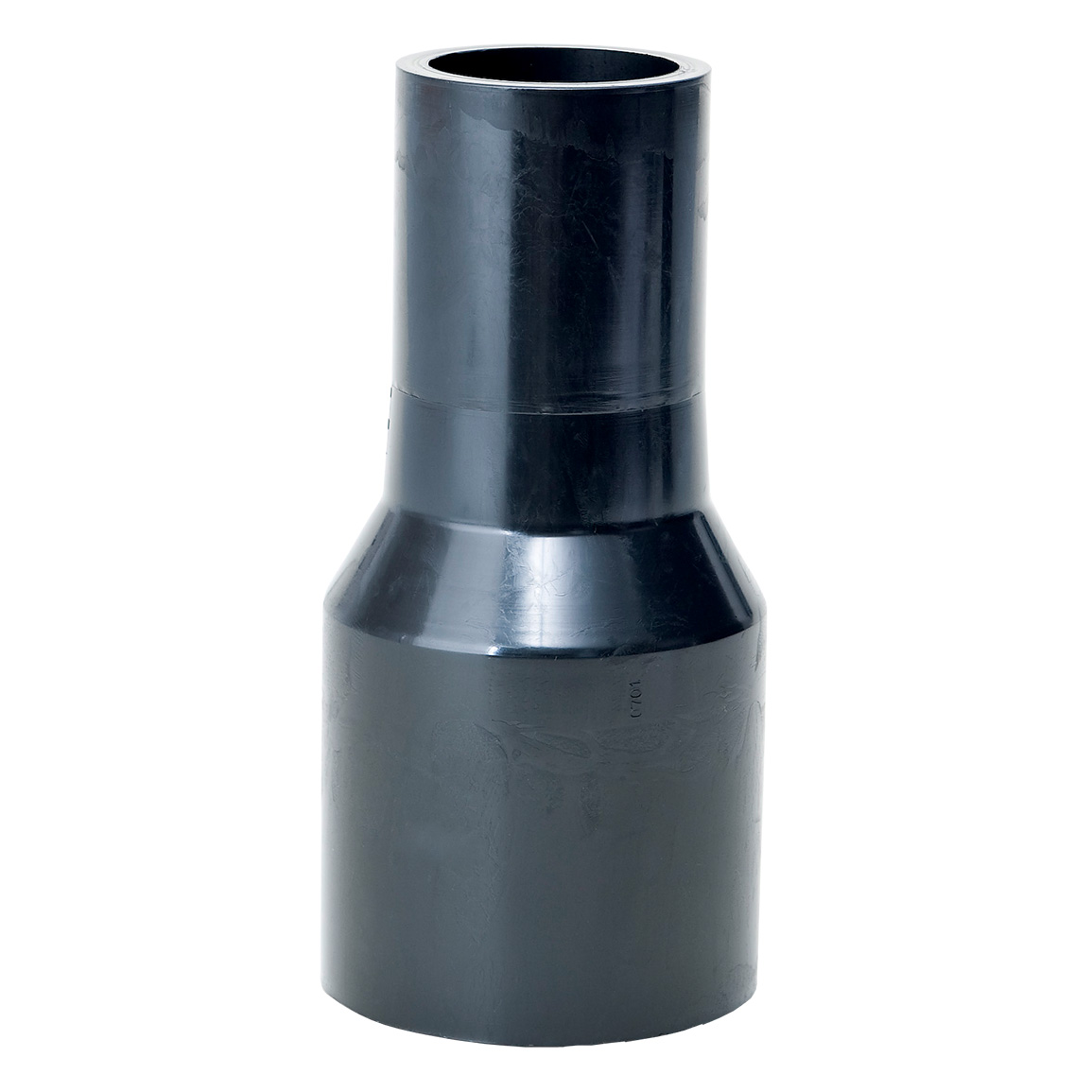

High Pressure PN25 Concentric Reducers

PE100
SDR7.4
PN25

High Pressure PN25 Concentric Reducers

PE100
SDR7.4
PN25

Product variant details

Qty In Quote	Size D (mm)	Size D1 (mm)	Code	L (mm)	L1 (mm)	L2 (mm)
SDR: 7.4 PN: 25 Size D (mm): 225 Size D1 (mm): 180 Add to QuoteUpdate Quote Cancel	225	180	LS225180R74	269	120	118
SDR: 7.4 PN: 25 Size D (mm): 225 Size D1 (mm): 200 Add to QuoteUpdate Quote Cancel	225	200	LS225200R74	258	120	114
SDR: 7.4 PN: 25 Size D (mm): 250 Size D1 (mm): 180 Add to QuoteUpdate Quote Cancel	250	180	LS250180R74	293	130	119
SDR: 7.4 PN: 25 Size D (mm): 250 Size D1 (mm): 200 Add to QuoteUpdate Quote Cancel	250	200	LS250200R74	273	130	114
SDR: 7.4 PN: 25 Size D (mm): 315 Size D1 (mm): 225 Add to QuoteUpdate Quote Cancel	315	225	LS315225R74	327	152	130
SDR: 7.4 PN: 25 Size D (mm): 315 Size D1 (mm): 250 Add to QuoteUpdate Quote Cancel	315	250	LS315250R74	342	152	147
SDR: 7.4 PN: 25 Size D (mm): 110 Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	110	90	LS11090R74	194	90	80
SDR: 7.4 PN: 25 Size D (mm): 125 Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	125	63	LS12563R74	190	90	68
SDR: 7.4 PN: 25 Size D (mm): 125 Size D1 (mm): 75 Add to QuoteUpdate Quote Cancel	125	75	LS12575R74	190	90	74
SDR: 7.4 PN: 25 Size D (mm): 125 Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	125	90	LS12590R74	189	90	80
SDR: 7.4 PN: 25 Size D (mm): 125 Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	125	110	LS125110R74	188	90	90
SDR: 7.4 PN: 25 Size D (mm): 140 Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	140	90	LS14090R74	205	96	82
SDR: 7.4 PN: 25 Size D (mm): 140 Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	140	110	LS140110R74	205	96	91
SDR: 7.4 PN: 25 Size D (mm): 140 Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	140	125	LS140125R74	197	96	94
SDR: 7.4 PN: 25 Size D (mm): 160 Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	160	90	LS16090R74	226	105	84
SDR: 7.4 PN: 25 Size D (mm): 160 Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	160	110	LS160110R74	224	105	93
SDR: 7.4 PN: 25 Size D (mm): 160 Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	160	125	LS160125R74	217	105	93
SDR: 7.4 PN: 25 Size D (mm): 160 Size D1 (mm): 140 Add to QuoteUpdate Quote Cancel	160	140	LS160140R74	214	105	97
SDR: 7.4 PN: 25 Size D (mm): 180 Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	180	110	LS180110R74	240	105	83
SDR: 7.4 PN: 25 Size D (mm): 180 Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	180	125	LS180125R74	236	105	88
SDR: 7.4 PN: 25 Size D (mm): 180 Size D1 (mm): 140 Add to QuoteUpdate Quote Cancel	180	140	LS180140R74	216	105	92
SDR: 7.4 PN: 25 Size D (mm): 180 Size D1 (mm): 160 Add to QuoteUpdate Quote Cancel	180	160	LS180160R74	216	105	99
SDR: 7.4 PN: 25 Size D (mm): 200 Size D1 (mm): 140 Add to QuoteUpdate Quote Cancel	200	140	LS200140R74	240	112	95
SDR: 7.4 PN: 25 Size D (mm): 200 Size D1 (mm): 160 Add to QuoteUpdate Quote Cancel	200	160	LS200160R74	234	112	99
SDR: 7.4 PN: 25 Size D (mm): 200 Size D1 (mm): 180 Add to QuoteUpdate Quote Cancel	200	180	LS200180R74	278	136	130
SDR: 7.4 PN: 25 Size D (mm): 225 Size D1 (mm): 160 Add to QuoteUpdate Quote Cancel	225	160	LS225160R74	262	120	105
SDR: 7.4 PN: 25 Size D (mm): 32 Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	32	25	LS3225R74	91	44	42
SDR: 7.4 PN: 25 Size D (mm): 40 Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	40	25	LS4025R74	100	50	42
SDR: 7.4 PN: 25 Size D (mm): 40 Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	40	32	LS4032R74	112	53	59
SDR: 7.4 PN: 25 Size D (mm): 50 Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	50	25	LS5025R74	113	54	43
SDR: 7.4 PN: 25 Size D (mm): 50 Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	50	32	LS5032R74	116	56	42
SDR: 7.4 PN: 25 Size D (mm): 50 Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	50	40	LS5040R74	111	55	51
SDR: 7.4 PN: 25 Size D (mm): 63 Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	63	25	LS6325R74	136	66	45
SDR: 7.4 PN: 25 Size D (mm): 63 Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	63	32	LS6332R74	134	67	48
SDR: 7.4 PN: 25 Size D (mm): 63 Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	63	40	LS6340R74	131	64	53
SDR: 7.4 PN: 25 Size D (mm): 63 Size D1 (mm): 50 Add to QuoteUpdate Quote Cancel	63	50	LS6350R74	128	65	56
SDR: 7.4 PN: 25 Size D (mm): 75 Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	75	32	LS7532R74	146	74	50
SDR: 7.4 PN: 25 Size D (mm): 75 Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	75	40	LS7540R74	142	74	51
SDR: 7.4 PN: 25 Size D (mm): 75 Size D1 (mm): 50 Add to QuoteUpdate Quote Cancel	75	50	LS7550R74	143	74	57
SDR: 7.4 PN: 25 Size D (mm): 75 Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	75	63	LS7563R74	147	73	67
SDR: 7.4 PN: 25 Size D (mm): 90 Size D1 (mm): 50 Add to QuoteUpdate Quote Cancel	90	50	LS9050R74	158	83	52
SDR: 7.4 PN: 25 Size D (mm): 90 Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	90	63	LS9063R74	168	84	66
SDR: 7.4 PN: 25 Size D (mm): 90 Size D1 (mm): 75 Add to QuoteUpdate Quote Cancel	90	75	LS9075R74	168	84	74
SDR: 7.4 PN: 25 Size D (mm): 110 Size D1 (mm): 50 Add to QuoteUpdate Quote Cancel	110	50	LS11050R74	180	90	57
SDR: 7.4 PN: 25 Size D (mm): 110 Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	110	63	LS11063R74	183	90	68
SDR: 7.4 PN: 25 Size D (mm): 110 Size D1 (mm): 75 Add to QuoteUpdate Quote Cancel	110	75	LS11075R74	182	90	75
