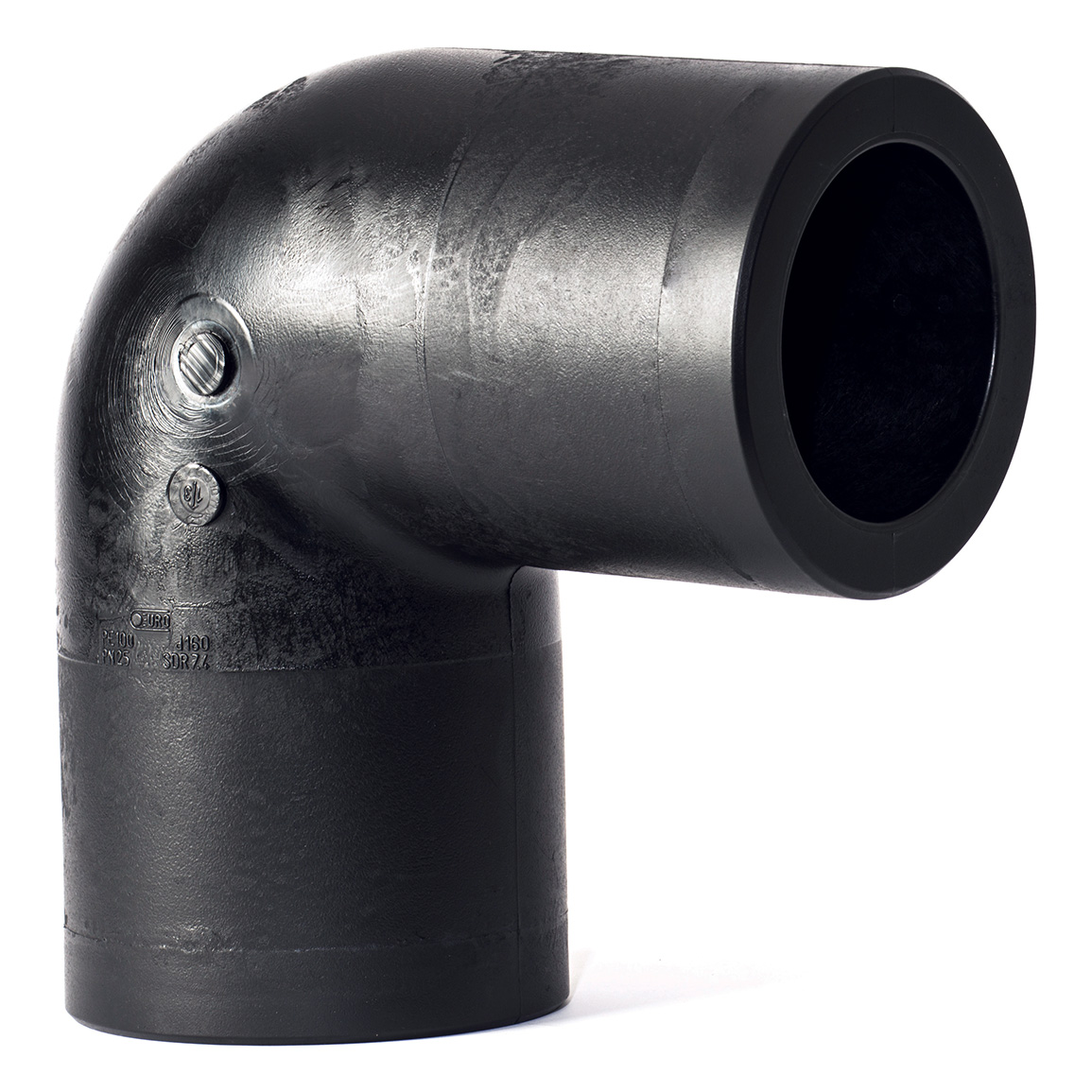

High Pressure PN25 Moulded Long Spigot 90° Elbows
PE100
SDR7.4
PN25
High Pressure PN25 Moulded Long Spigot 90° Elbows
- PE100
- SDR7.4
- PN25
Product variant details
| Qty In Quote | Size D (mm) | Code | Z (mm) | L (mm) |
|---|---|---|---|---|
| 25 | LS259074 | 47 | 67 | |
| 32 | LS329074 | 50 | 72 | |
| 40 | LS409074 | 56 | 85 | |
| 50 | LS509074 | 57 | 88 | |
| 63 | LS639074 | 58 | 108 | |
| 75 | LS759074 | 73 | 127 | |
| 90 | LS909074 | 82 | 154 | |
| 110 | LS1109074 | 91 | 153 | |
| 125 | LS1259074 | 91 | 172 | |
| 140 | LS1409074 | 97 | 182 | |
| 160 | LS1609074 | 104 | 215 | |
| 180 | LS1809074 | 106 | 228 | |
| 200 | LS2009074 | 117 | 246 | |
| 225 | LS2259074 | 119 | 282 | |
| 250 | LS2509074 | 130 | 320 | |
| 280 | LS2809074 | 124 | 348 | |
| 315 | LS3159074 | 151 | 358 |
