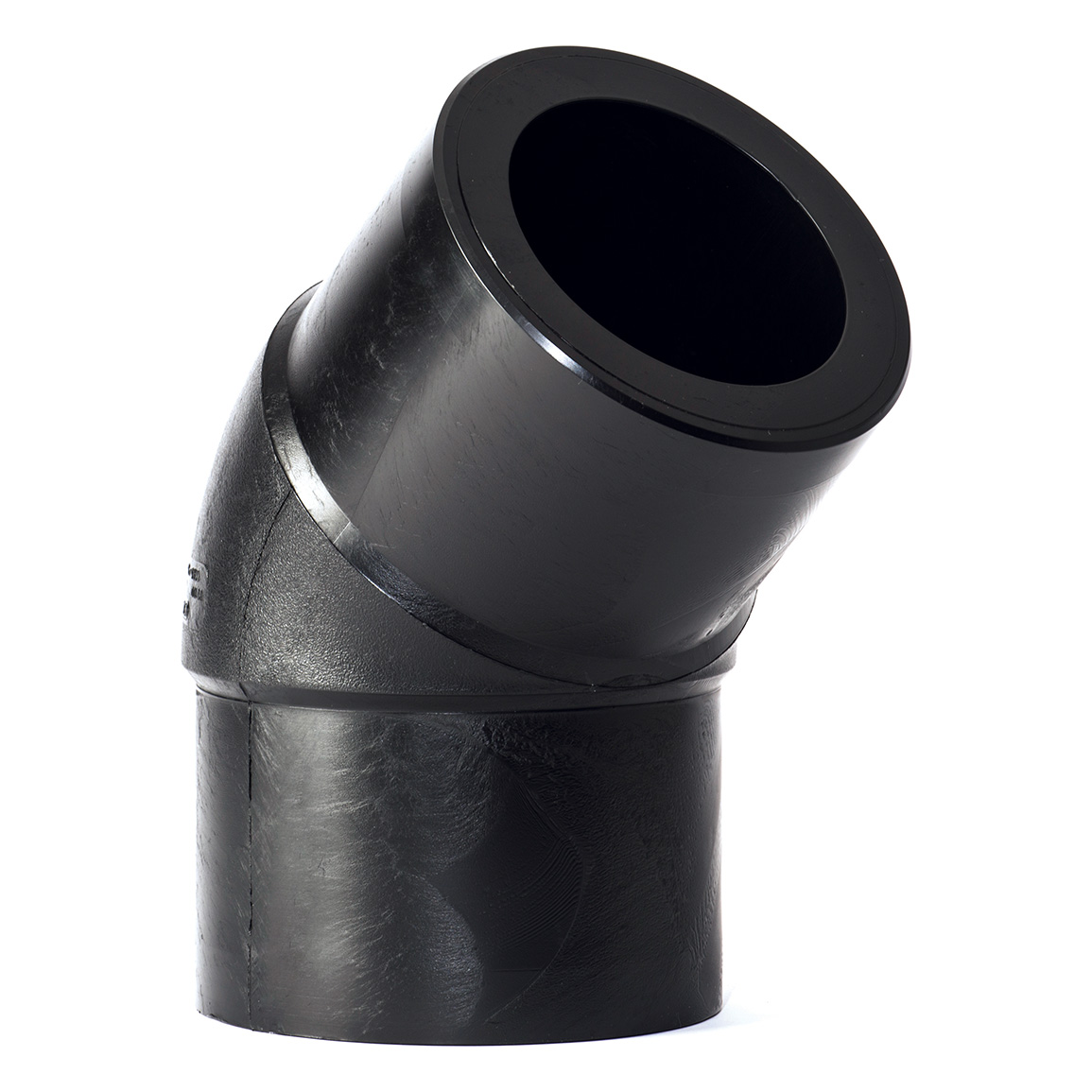

High Pressure PN25 Moulded Long Spigot 45° Elbows
PE100
SDR7.4
PN25
High Pressure PN25 Moulded Long Spigot 45° Elbows
- PE100
- SDR7.4
- PN25
Product variant details
| Qty In Quote | Size D (mm) | Code | L (mm) | Z (mm) |
|---|---|---|---|---|
| 32 | LS324574 | 50 | 70 | |
| 40 | LS404574 | 58 | 78 | |
| 50 | LS504574 | 59 | 84 | |
| 63 | LS634574 | 69 | 90 | |
| 75 | LS754574 | 73 | 100 | |
| 90 | LS904574 | 83 | 109 | |
| 110 | LS1104574 | 93 | 127 | |
| 125 | LS1254574 | 94 | 159 | |
| 140 | LS1404574 | 98 | 165 | |
| 160 | LS1604574 | 107 | 175 | |
| 180 | LS1804574 | 108 | 173 | |
| 200 | LS2004574 | 115 | 180 | |
| 225 | LS2254574 | 121 | 193 | |
| 250 | LS2504574 | 133 | 206 | |
| 280 | LS2804574 | 140 | 246 | |
| 315 | LS3154574 | 152 | 258 |
