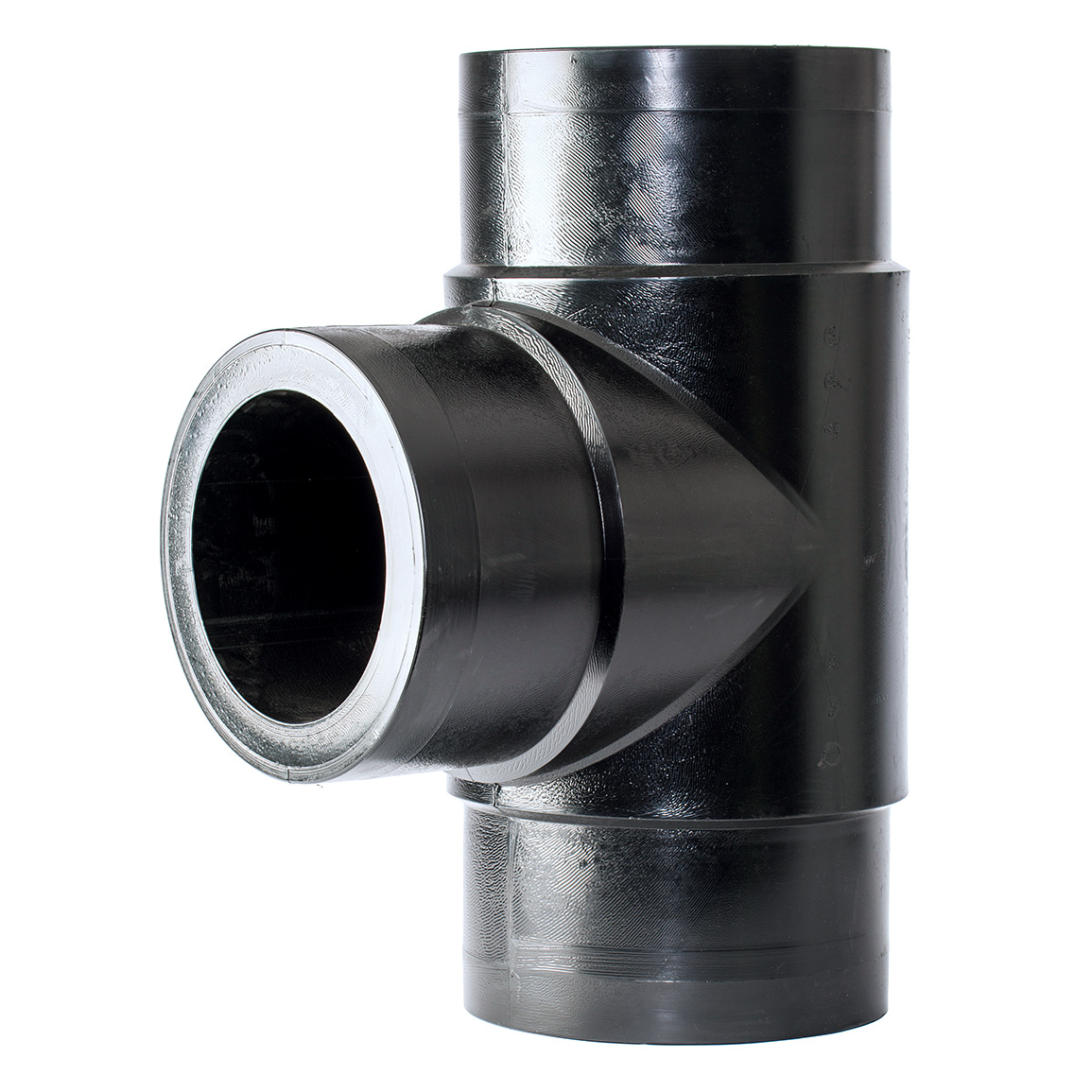

High Pressure PN25 Moulded Equal Tees
PE100
SDR7.4
PN25
High Pressure PN25 Moulded Equal Tees
- PE100
- SDR7.4
- PN25
Product variant details
| Qty In Quote | Size D (mm) | Code | Z (mm) | Z1 (mm) | L (mm) |
|---|---|---|---|---|---|
| 25 | LS25T74 | 139 | 70 | 45 | |
| 32 | LS32T74 | 147 | 74 | 50 | |
| 40 | LS40T74 | 171 | 86 | 55 | |
| 50 | LS50T74 | 179 | 90 | 57 | |
| 63 | LS63T74 | 229 | 115 | 68 | |
| 75 | LS75T74 | 257 | 129 | 73 | |
| 90 | LS90T74 | 303 | 152 | 82 | |
| 110 | LS110T74 | 338 | 169 | 92 | |
| 125 | LS125T74 | 355 | 178 | 92 | |
| 140 | LS140T74 | 388 | 194 | 96 | |
| 160 | LS160T74 | 423 | 212 | 104 | |
| 180 | LS180T74 | 450 | 225 | 107 | |
| 200 | LS200T74 | 500 | 250 | 117 | |
| 225 | LS225T74 | 538 | 269 | 120 | |
| 250 | LS250T74 | 597 | 299 | 132 | |
| 280 | LS280T74 | 653 | 327 | 140 | |
| 315 | LS315T74 | 703 | 352 | 152 |
