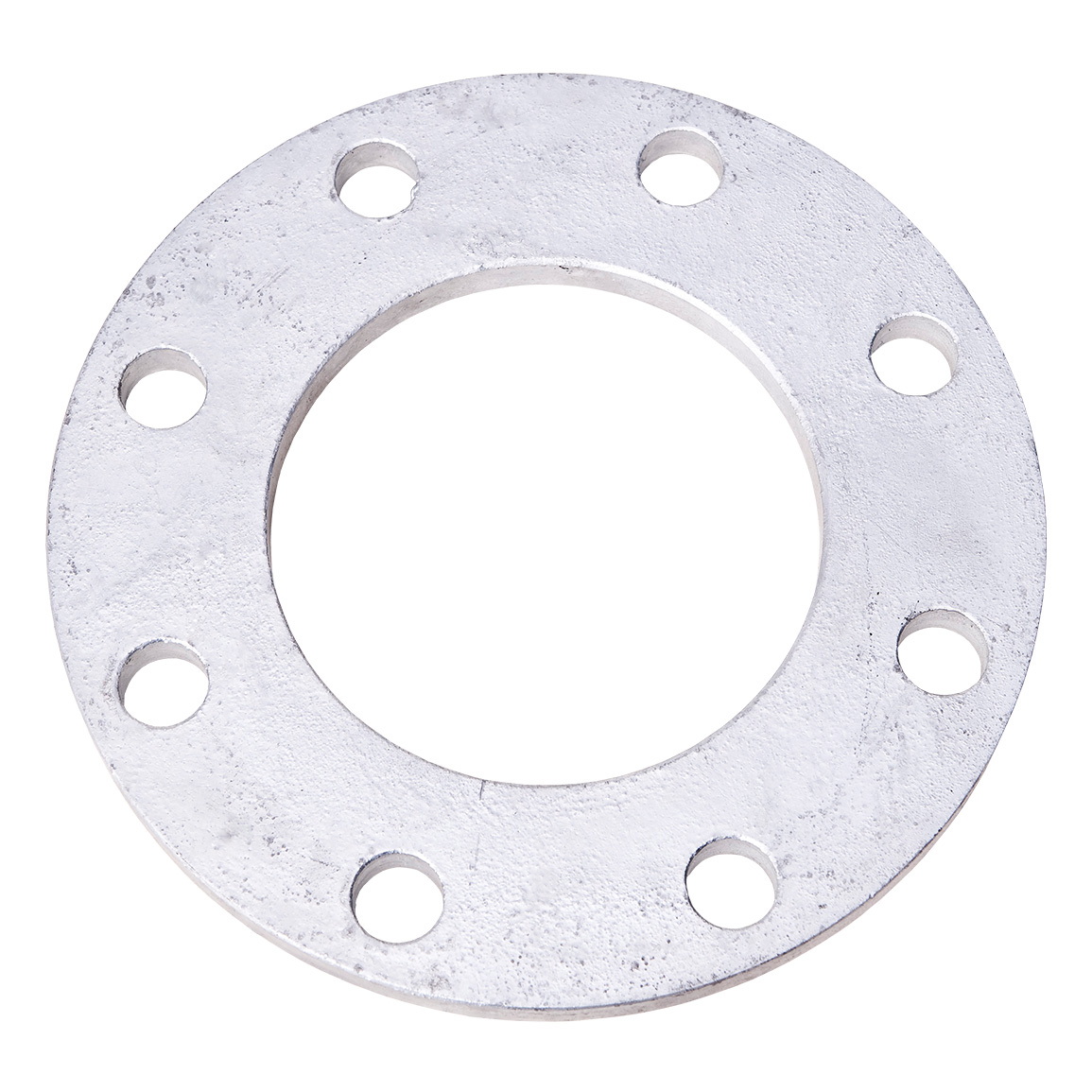

| Qty In Quote | PE Pipe Size (mm) | Code | Flange Size | OD (mm) | PCD (mm) | ID (mm) | TH (mm) | Bolt Holes no x D (mm) | Bolt Size (M) | Bolt Size (Imp) | Weight (kg) |
|---|
|
|
450 | GBR450A | 18" | 635 | 578 | 480 | 36 | 16 x 32 | M30 | 1 1/8" | 34.8 |
|
|
500 | GBR500A | 20" | 700 | 635 | 533 | 40 | 20 x 33 | M30 | 1 1/8" | 45.84 |
|
|
560 | GBR560A | 22" | 750 | 692 | 590 | 46 | 20 x 36 | M32 | 1 1/4" | 53.98 |
|
|
630 | GBR630A | 24" | 813 | 749 | 660 | 50 | 20 x 36 | M32 | 1 1/4" | 62.07 |
|
|
710 | GBR710A | 28" | 927 | 863.5 | 745 | 50 | 28 x 36 | M32 | 1 1/4" | 83.43 |
|
|
800 | GBR800A | 32" | 1060 | 978 | 835 | 50 | 28 x 41 | M39 | 1 1/2" | 117.21 |
|
|
900 | GBR900A | 36" | 1175 | - | 950 | 89 | 28 x 41 | M39 | 1 1/2" | 237.09 |
|
|
1000 | GBR1000A | 40" | 1290 | 1124 | 1030 | 90 | 36 x 41 | M39 | 1 1/2" | 301.84 |
|
|
1200 | GBR1200A | 48" | 1510 | 1142.5 | 1235 | 108 | 44 x 41 | M39 | 1 1/2" | 454.47 |
|
|
20 | GBR20A | 1/2" | 90 | 60.5 | 32 | 6 | 4 x 16 | M14 | 1/2" | 0.22 |
|
|
25 | GBR25A | 3/4" | 98 | 70 | 37 | 8 | 4 x 16 | M14 | 1/2" | 0.36 |
|
|
32 | GBR32A | 1" | 108 | 79.5 | 44 | 8 | 4 x 16 | M14 | 1/2" | 0.43 |
|
|
40 | GBR40A | 1 1/4" | 117 | 89 | 52 | 8 | 4 x 16 | M14 | 1/2" | 0.49 |
|
|
50 | GBR50A | 1 1/2" | 127 | 98.5 | 62 | 10 | 4 x 16 | M14 | 1/2" | 0.7 |
|
|
63 | GBR63A | 2" | 152 | 120.5 | 78 | 10 | 4 x 20 | M18 | 5/8" | 0.95 |
|
|
75 | GBR75A | 2 1/2" | 178 | 139.5 | 92 | 10 | 4 x 20 | M18 | 5/8" | 1.34 |
|
|
90 | GBR90A | 3" | 191 | 152 | 108 | 12 | 4 x 20 | M18 | 5/8" | 1.72 |
|
|
110 | GBR110A | 4" | 229 | 190.5 | 128 | 12 | 8 x 20 | M18 | 5/8" | 2.44 |
|
|
125 | GBR125A | 5" | 254 | 216 | 140 | 16 | 8 x 23 | M20 | 3/4" | 4.02 |
|
|
140 | GBR140A | 5" | 254 | 216 | 158 | 16 | 8 x 23 | M20 | 3/4" | 3.49 |
|
|
160 | GBR160A | 6" | 279 | 241 | 178 | 16 | 8 x 23 | M20 | 3/4" | 4.15 |
|
|
180 | GBR180A | 6" | 279 | 241 | 195 | 16 | 8 x 23 | M20 | 3/4" | 3.52 |
|
|
200 | GBR200A | 8" | 343 | 298.5 | 235 | 20 | 8 x 23 | M20 | 3/4" | 7.19 |
|
|
225 | GBR225A | 8" | 343 | 298.5 | 240 | 20 | 8 x 23 | M20 | 3/4" | 6.9 |
|
|
250 | GBR250A | 10" | 406 | 362 | 290 | 20 | 12 x 26 | M24 | 7/8" | 8.98 |
|
|
280 | GBR280A | 10" | 406 | 362 | 300 | 20 | 12 x 26 | M24 | 7/8" | 8.25 |
|
|
315 | GBR315A | 12" | 483 | 432 | 345 | 25 | 12 x 26 | M24 | 7/8" | 16.4 |
|
|
355 | GBR355A | 14" | 535 | 476 | 376 | 28 | 12 x 29 | M27 | 1" | 23.32 |
|
|
400 | GBR400A | 16" | 600 | 540 | 430 | 32 | 16 x 29 | M27 | 1" | 31.97 |
