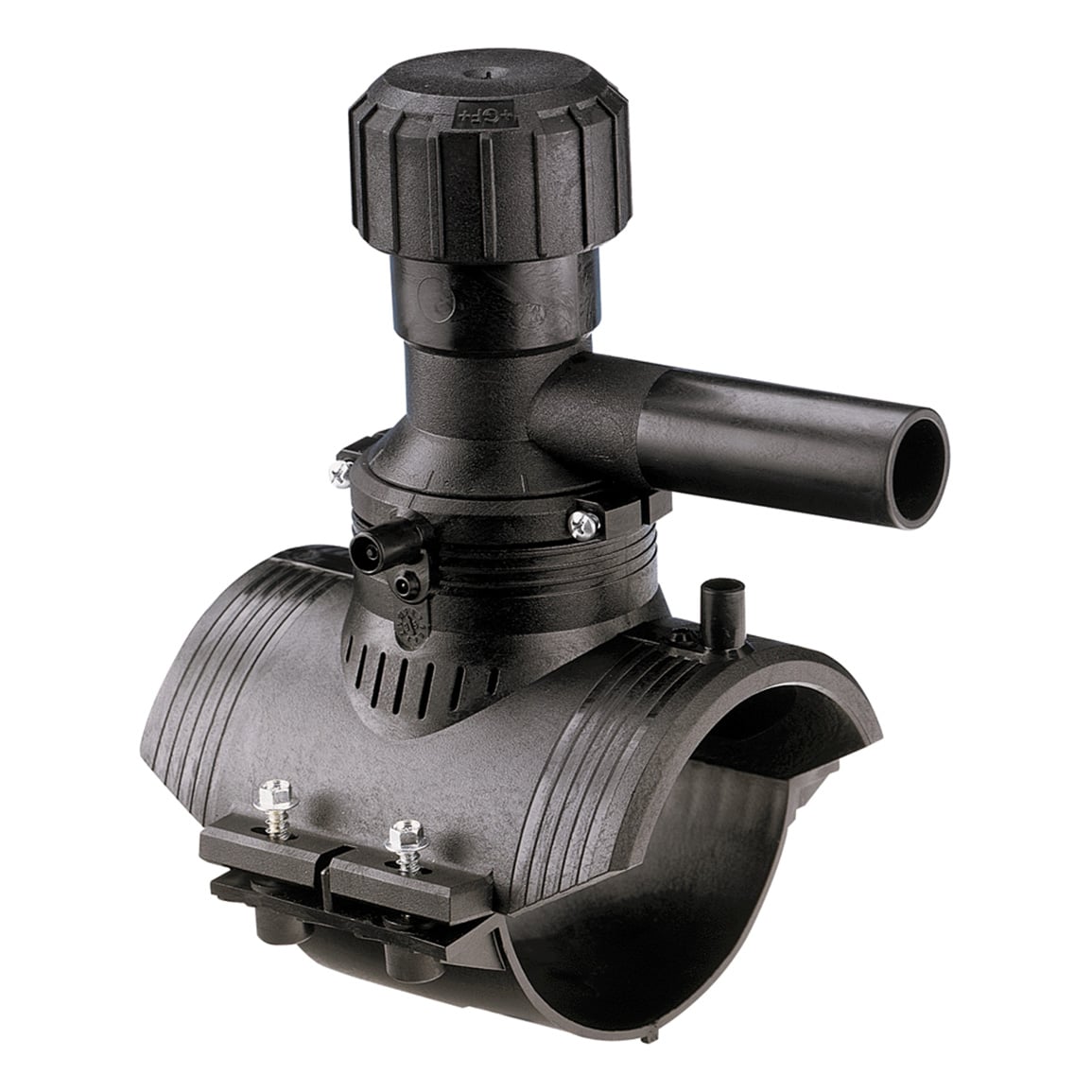

Electrofusion Tapping Saddles

PE100
SDR11
PN16

Electrofusion Tapping Saddles

PE100
SDR11
PN16

Product variant details

Qty In Quote	Mainline D (mm)	Branch Size D1 (mm)	Code	H (mm)	H1 (mm)	L (mm)	Z (mm)	D2 Punch Diameter (mm)	Weight (kg)
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	200	20	3920020TS	254	176	165	130	32	1.015
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	200	25	3920025TS	254	176	165	130	32	1.015
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	200	32	3920032TS	254	176	165	130	32	0.985
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	200	40	3920040TS	254	176	165	137	32	1.024
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	200	63	3920063TS	303	181	165	160	35	1.29
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	225	20	3922520TS	266	188	165	130	32	1.016
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	225	25	3922525TS	266	188	165	130	32	1.025
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	225	32	3922532TS	266	188	165	130	32	1.019
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	225	40	3922540TS	266	188	165	137	32	1.029
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	225	63	3922563TS	315	193	165	160	35	1.738
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	250	20	3925020TS	279	201	165	130	32	1.025
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	250	25	3925025TS	279	201	165	130	32	1.026
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	250	32	3925032TS	279	201	165	130	32	0.996
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	250	40	3925040TS	279	201	165	137	32	1.008
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	250	63	3925063TS	328	206	165	160	35	1.733
SDR: 11 PN: 16 Mainline D (mm): 280 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	280	63	3928063TS	343	206	165	160	35	1.478
SDR: 11 PN: 16 Mainline D (mm): 315 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	315-355	63	39315-35563TS	381	206	165	160	35	1.481
SDR: 11 PN: 16 Mainline D (mm): 400 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	400	63	3940063TS	403	206	165	160	35	1.473
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	125	20	3912520TS	216	138	165	130	32	0.88
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	125	25	3912525TS	216	138	165	130	32	0.878
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	125	32	3912532TS	216	138	165	130	32	0.878
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	125	40	3912540TS	216	138	165	137	32	0.874
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	125	63	3912563TS	265	143	165	160	35	1.184
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	140	20	3914020TS	233	146	165	130	32	0.887
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	140	25	3914025TS	233	146	165	130	32	0.874
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	140	32	3914032TS	233	146	165	130	32	0.894
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	140	40	3914040TS	233	146	165	137	32	0.92
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	140	63	3914063TS	273	151	165	160	35	1.18
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	160	20	3916020TS	243	156	182	130	32	0.916
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	160	25	3916025TS	243	156	182	130	32	0.912
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	160	32	3916032TS	243	156	182	130	32	0.915
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	160	40	3916040TS	243	156	182	137	32	0.936
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	160	63	3916063TS	283	161	182	160	35	1.221
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	180	20	3918020TS	244	166	165	130	32	0.994
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	180	25	3918025TS	244	166	165	130	32	1.001
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	180	32	3918032TS	244	166	165	130	32	0.957
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	180	40	3918040TS	244	166	165	137	32	1.007
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	180	63	3918063TS	293	171	165	160	35	1.587
SDR: 11 PN: 16 Mainline D (mm): 63 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	63	20	396320TS	186	108	165	130	32	0.697
SDR: 11 PN: 16 Mainline D (mm): 63 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	63	25	396325TS	186	108	165	130	32	0.637
SDR: 11 PN: 16 Mainline D (mm): 63 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	63	32	396332TS	186	108	165	130	32	0.701
SDR: 11 PN: 16 Mainline D (mm): 63 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	63	40	396340TS	186	108	165	137	32	0.718
SDR: 11 PN: 16 Mainline D (mm): 63 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	63	63	396363TS	134	112	165	160	32	1.426
SDR: 11 PN: 16 Mainline D (mm): 75 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	75	20	397520TS	191	113	165	130	32	0.831
SDR: 11 PN: 16 Mainline D (mm): 75 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	75	25	397525TS	191	113	165	130	32	0.83
SDR: 11 PN: 16 Mainline D (mm): 75 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	75	32	397532TS	191	113	165	130	32	0.812
SDR: 11 PN: 16 Mainline D (mm): 75 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	75	40	397540TS	191	113	165	137	32	0.849
SDR: 11 PN: 16 Mainline D (mm): 75 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	75	63	397563TS	240	118	165	160	32	1.549
SDR: 11 PN: 16 Mainline D (mm): 90 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	90	20	399020TS	199	121	165	130	32	0.794
SDR: 11 PN: 16 Mainline D (mm): 90 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	90	25	399025TS	199	121	165	130	32	0.79
SDR: 11 PN: 16 Mainline D (mm): 90 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	90	32	399032TS	199	121	165	130	32	0.77
SDR: 11 PN: 16 Mainline D (mm): 90 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	90	40	399040TS	199	121	165	137	32	0.811
SDR: 11 PN: 16 Mainline D (mm): 90 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	90	63	399063TS	248	126	165	160	32	1.494
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 20 Add to QuoteUpdate Quote Cancel	110	20	3911020TS	209	131	182	130	32	0.826
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 25 Add to QuoteUpdate Quote Cancel	110	25	3911025TS	209	131	182	130	32	0.808
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 32 Add to QuoteUpdate Quote Cancel	110	32	3911032TS	209	131	182	130	32	0.831
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 40 Add to QuoteUpdate Quote Cancel	110	40	3911040TS	209	131	182	137	32	0.805
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 63 Add to QuoteUpdate Quote Cancel	110	63	3911063TS	258	136	182	160	35	1.097
