| Qty In Quote | Size OD (mm) | Code | D (mm) | A (mm) | B (mm) | Weight (kg) | SDR | PN |
|---|
|
|
50 | SF5011 | 84 | 12 | 50 | 0.08 | 11 | 16 |
|
|
63 | SF6311 | 95 | 14 | 50 | 0.14 | 11 | 16 |
|
|
75 | SF7511 | 108 | 16 | 50 | 0.22 | 11 | 16 |
|
|
90 | SF9011 | 128 | 17 | 80 | 0.33 | 11 | 16 |
|
|
110 | SF11011 | 160 | 18 | 80 | 0.48 | 11 | 16 |
|
|
125 | SF12511 | 158 | 25 | 80 | 0.5 | 11 | 16 |
|
|
140 | SF14011 | 187 | 25 | 80 | 0.76 | 11 | 16 |
|
|
160 | SF16011 | 212 | 25 | 80 | 0.77 | 11 | 16 |
|
|
180 | SF18011 | 213 | 30 | 80 | 0.73 | 11 | 16 |
|
|
200 | SF20011 | 270 | 32 | 100 | 1.34 | 11 | 16 |
|
|
225 | SF22511 | 270 | 32 | 100 | 1.25 | 11 | 16 |
|
|
250 | SF25011 | 334 | 32 | 80 | 2.55 | 11 | 16 |
|
|
280 | SF28011 | 334 | 32 | 80 | 2.4 | 11 | 16 |
|
|
315 | SF31511 | 380 | 35 | 90 | 3.52 | 11 | 16 |
|
|
355 | SF35511 | 444 | 40 | 100 | 5.35 | 11 | 16 |
|
|
400 | SF40011 | 495 | 45 | 110 | 6.72 | 11 | 16 |
|
|
450 | SF45011 | 545 | 45 | 110 | 8.9 | 11 | 16 |
|
|
500 | SF50011 | 596 | 60 | 125 | 12.84 | 11 | 16 |
|
|
560 | SF56011 | 657 | 60 | 130 | 15.8 | 11 | 16 |
|
|
630 | SF63011 | 710 | 60 | 130 | 18.05 | 11 | 16 |
|
|
710 | SF71011 | 800 | 60 | 130 | - | 11 | 16 |
|
|
800 | SF80011 | 905 | 90 | 130 | - | 11 | 16 |
|
|
900 | SF90011 | 1005 | 90 | 130 | - | 11 | 16 |
|
|
1000 | SF100011 | 1110 | 90 | 130 | - | 11 | 16 |
|
|
1200 | SF120011 | 1330 | 110 | 170 | - | 11 | 16 |
|
|
90 | SF9017 | 128 | 17 | 80 | 0.28 | 17 | 10 |
|
|
110 | SF11017 | 160 | 18 | 80 | 0.38 | 17 | 10 |
|
|
125 | SF12517 | 158 | 18 | 80 | 0.38 | 17 | 10 |
|
|
140 | SF14017 | 187 | 18 | 80 | 0.53 | 17 | 10 |
|
|
160 | SF16017 | 212 | 18 | 80 | 0.64 | 17 | 10 |
|
|
180 | SF18017 | 213 | 20 | 80 | 0.57 | 17 | 10 |
|
|
200 | SF20017 | 270 | 24 | 100 | 1.13 | 17 | 10 |
|
|
225 | SF22517 | 270 | 24 | 100 | 0.99 | 17 | 10 |
|
|
250 | SF25017 | 334 | 32 | 80 | 2.14 | 17 | 10 |
|
|
280 | SF28017 | 334 | 32 | 80 | 1.89 | 17 | 10 |
|
|
315 | SF31517 | 380 | 30 | 90 | 2.79 | 17 | 10 |
|
|
355 | SF35517 | 444 | 35 | 100 | 4.32 | 17 | 10 |
|
|
400 | SF40017 | 495 | 45 | 100 | 5.41 | 17 | 10 |
|
|
450 | SF45017 | 545 | 45 | 110 | 7.12 | 17 | 10 |
|
|
500 | SF50017 | 596 | 60 | 125 | 10.29 | 17 | 10 |
|
|
560 | SF56017 | 657 | 60 | 130 | 12.48 | 17 | 10 |
|
|
630 | SF63017 | 710 | 60 | 130 | 13.38 | 17 | 10 |
|
|
710 | SF71017 | 800 | 60 | 130 | 17.63 | 17 | 10 |
|
|
800 | SF80017 | 940 | 60 | 130 | 25.47 | 17 | 10 |
|
|
900 | SF90017 | 1050 | 60 | 130 | 31.9 | 17 | 10 |
|
|
1000 | SF100017 | 1125 | 60 | 130 | 34.39 | 17 | 10 |
|
|
1200 | SF120017 | 1330 | 80 | 170 | - | 17 | 10 |

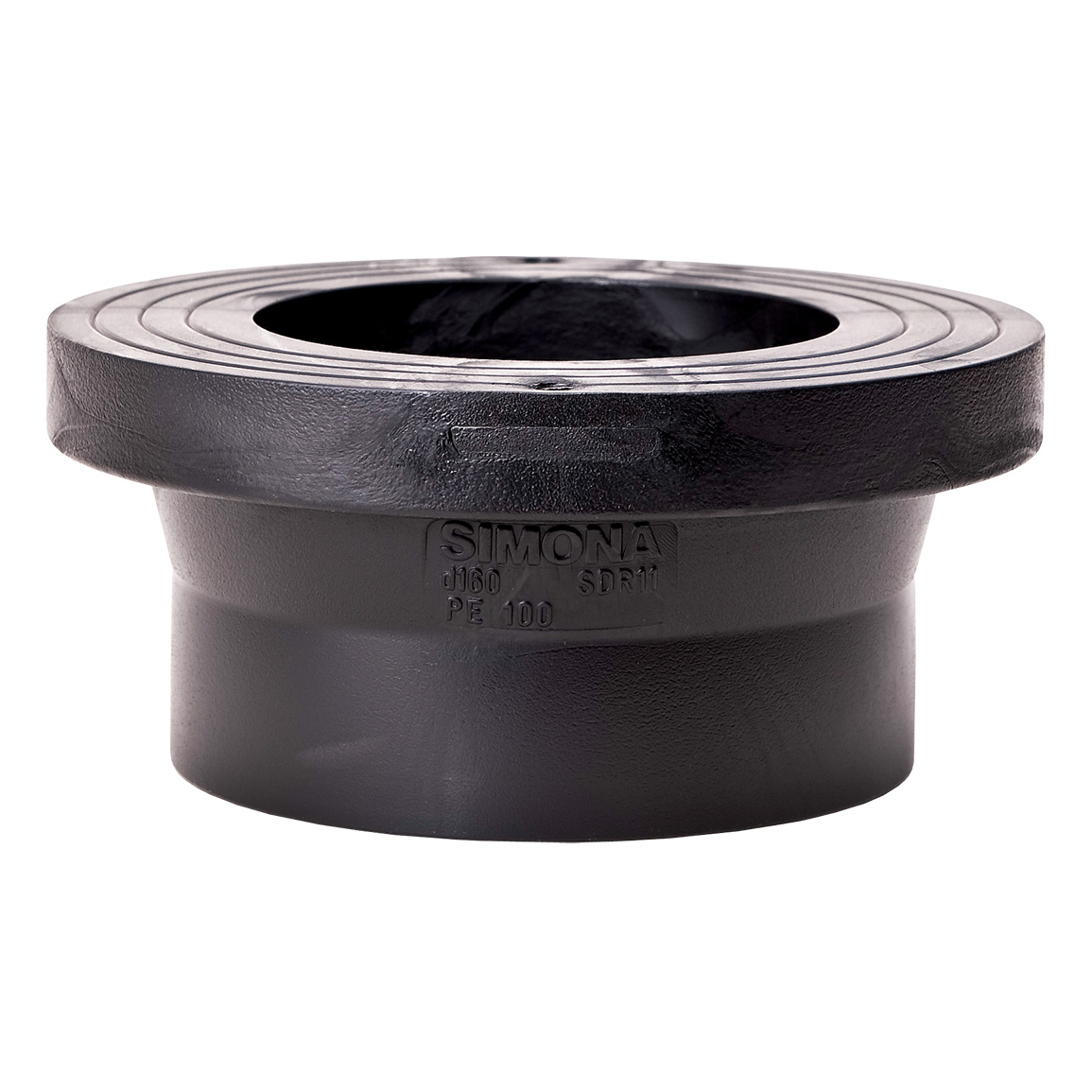

PE100
SDR11/17
PN16/10
1300 083 326
