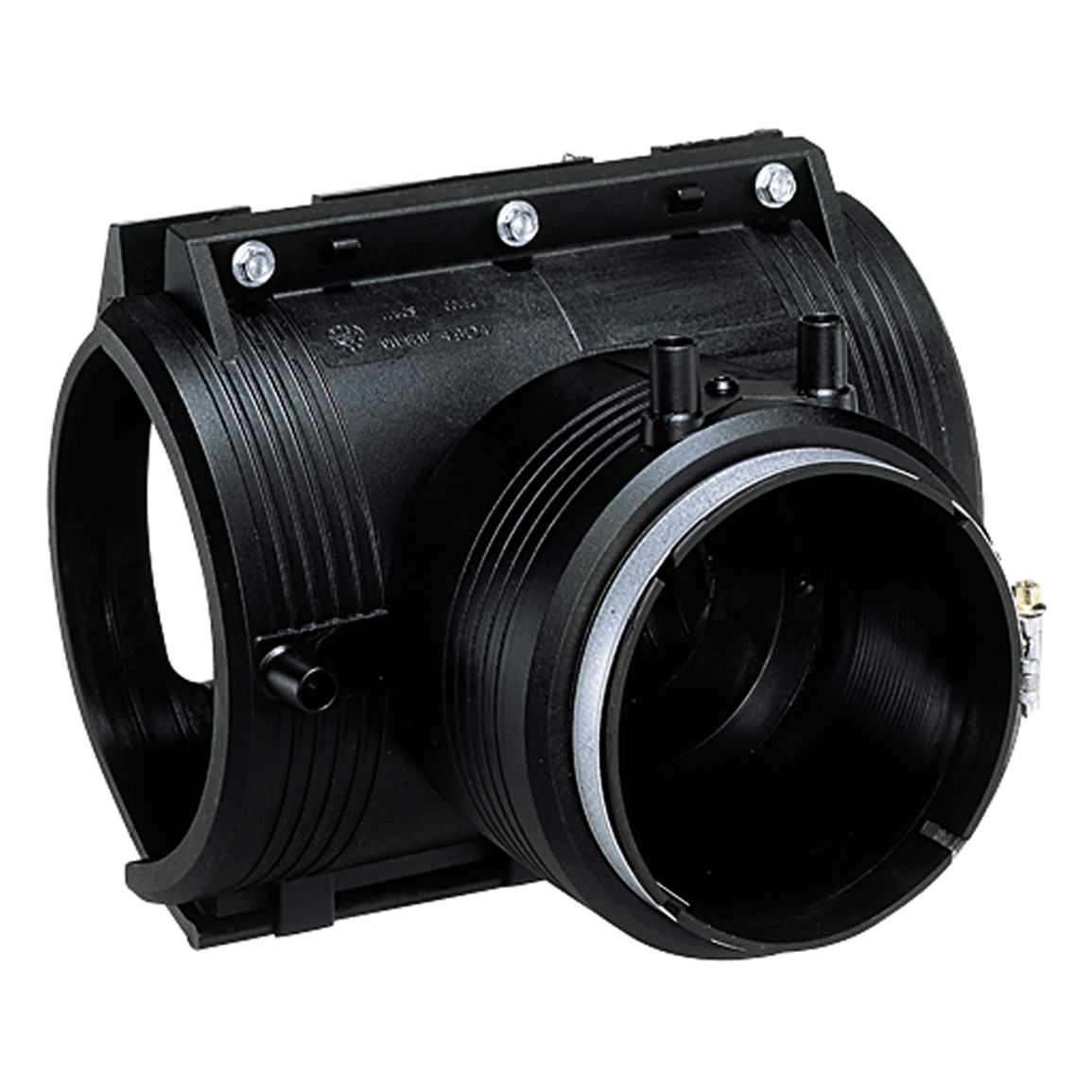

Electrofusion Branch Saddle with Underpart (Outlet 90-125mm)

PE100
SDR11
PN16

Electrofusion Branch Saddle with Underpart (Outlet 90-125mm)

PE100
SDR11
PN16

Product variant details

Qty In Quote	Mainline D (mm)	Branch Size D1 (mm)	Code	D2 (mm)	L1 (mm)	L	H	B	Weight (kg)
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	110	90	3911090BS	65	82	220	101	164	1.124
SDR: 11 PN: 16 Mainline D (mm): 110 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	110	110	39110110BS	65	88	220	107	164	1.224
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	125	90	3912590BS	65	82	220	101	179	1.134
SDR: 11 PN: 16 Mainline D (mm): 125 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	125	110	39125110BS	65	88	220	107	179	1.29
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	140	90	3914090BS	65	81	220	101	195	0.982
SDR: 11 PN: 16 Mainline D (mm): 140 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	140	110	39140110BS	65	87	220	107	195	1.087
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	160	90	3916090BS	65	82	240	102	215	1.449
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	160	110	39160110BS	86	88	240	108	215	1.582
SDR: 11 PN: 16 Mainline D (mm): 160 Branch Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	160	125	39160125BS	86	99	240	129	215	1.782
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	180	90	3918090BS	65	82	260	102	237	1.672
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	180	110	39180110BS	86	88	260	108	237	1.765
SDR: 11 PN: 16 Mainline D (mm): 180 Branch Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	180	125	39180125BS	86	99	260	129	237	2.015
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	200	90	3920090BS	65	82	260	102	253	1.803
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	200	110	39200110BS	86	88	260	108	253	1.963
SDR: 11 PN: 16 Mainline D (mm): 200 Branch Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	200	125	39200125BS	86	99	260	129	253	2.128
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	225	90	3922590BS	65	82	260	102	287	2.006
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	225	110	39225110BS	86	88	260	108	287	2.4
SDR: 11 PN: 16 Mainline D (mm): 225 Branch Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	225	125	39225125BS	86	99	260	129	287	2.312
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 90 Add to QuoteUpdate Quote Cancel	250	90	3925090BS	65	82	260	102	312	2.145
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 110 Add to QuoteUpdate Quote Cancel	250	110	39250110BS	86	88	260	108	312	2.258
SDR: 11 PN: 16 Mainline D (mm): 250 Branch Size D1 (mm): 125 Add to QuoteUpdate Quote Cancel	250	125	39250125BS	86	99	260	129	312	2.5
