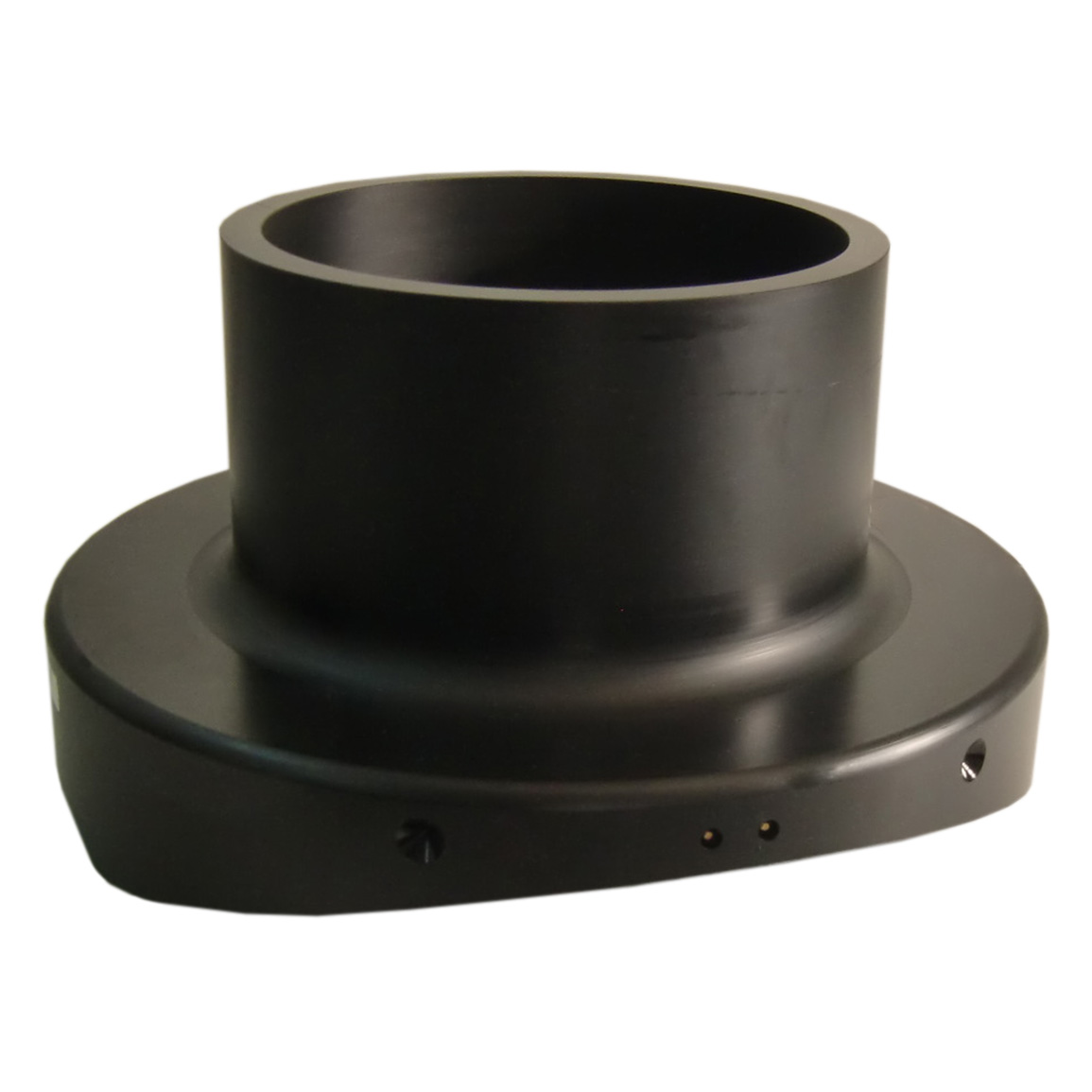

Electrofusion Branch Saddle Topload (Outlet 315mm) - Tefco

Electrofusion Branch Saddle Topload (Outlet 315mm)

PE100
SDR11
PN16

Electrofusion Branch Saddle Topload (Outlet 315mm)

PE100
SDR11
PN16

Product variant details

Qty In Quote	Mainline D (mm)	Branch Size d1 (mm)	Code	d2 (mm)	L1 (mm)	L	H	h	Weight (kg)
SDR: 11 PN: 16 Mainline D (mm): 450 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	450	315	39450315BS	232	157	500	346	216	18.5
SDR: 11 PN: 16 Mainline D (mm): 500 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	500	315	39500315BS	232	157	500	337	216	17
SDR: 11 PN: 16 Mainline D (mm): 560 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	560	315	39560315BS	232	157	500	327	216	16.1
SDR: 11 PN: 16 Mainline D (mm): 630 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	630	315	39630315BS	232	157	500	312	216	15.95
SDR: 11 PN: 16 Mainline D (mm): 710 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	710	315	39710315BS	232	157	500	297	216	14.8
SDR: 11 PN: 16 Mainline D (mm): 800 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	800	315	39800315BS	232	157	500	287	216	14.3
SDR: 11 PN: 16 Mainline D (mm): 900 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	900	315	39900315BS	232	157	500	281	216	13.8
SDR: 11 PN: 16 Mainline D (mm): 1000 Branch Size D1 (mm): 315 Add to QuoteUpdate Quote Cancel	1000	315	391000315BS	232	157	500	274	216	13.5
