Buttwelding Machine Remedy
Buttwelding Machine Remedy

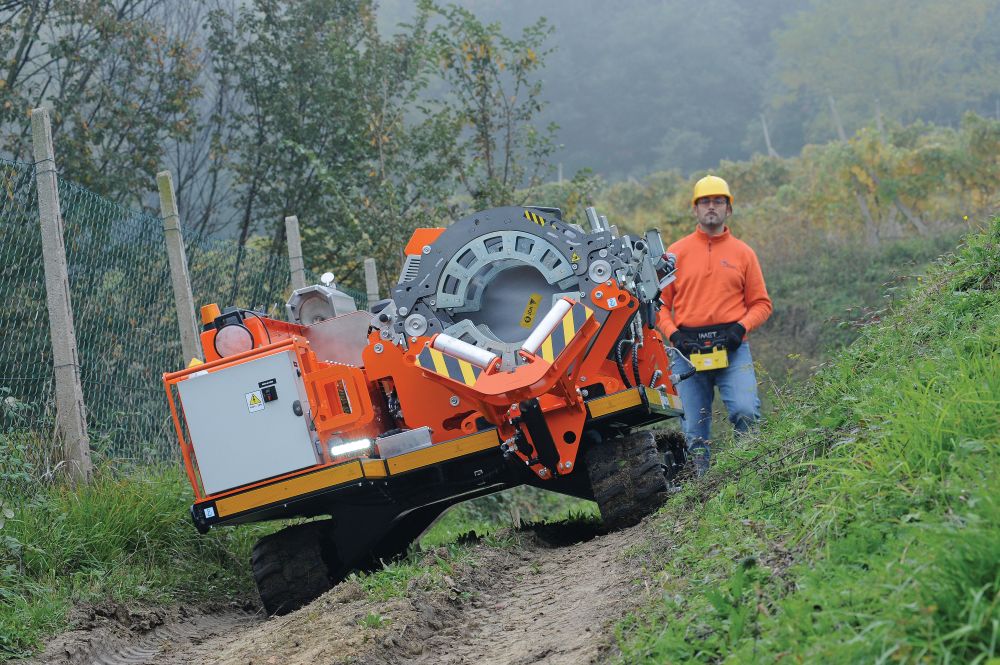

The Remedy is an independent, track driven welding machine powered by an on-board generator. It’s designed for butt welding HDPE and PP pipes from 200mm to 1000mm Ø. Availble in two versions: Manual or Easy life welding cycle. The Easy Life system is able to manage the welding process in a semi-automatic way. The welder’s electronic system allows for the continuous repeat of welding cycles and automatic control of preset parameters. The Remedy 1000 has a system to open and close the clamps and a heating plate and facer with hydraulic movement. The body is easily removable from its tracks so it can be used in confined spaces. The welding machine can be disconnectd from its generator and connected to a mainline or another external generator.
Product variant details
| Qty In Quote | Model | Code | Working Range (mm) | Weight (kg) |
|---|---|---|---|---|
| Remedy 500 | REM500 | 200 - 500 | 2250 | |
| Remedy 1000 | REM1000 | 335 - 1000 | 550 (tracks and generator) 9200 (total) |
Key Benefits
- Easy Life welding system or Manual
- Welding standard: ISO 21307 High Pressure
- Able to weld HDPE pipe up to 1000mm Ø
- Hydraulic lateral rollers
- Remedy 500 can drive over 30% slopes and Remedy 1000EL can drive over 35% slops
- Remote control track up to 100m
