Buttwelding Machine Delta Line
Buttwelding Machine Delta Line

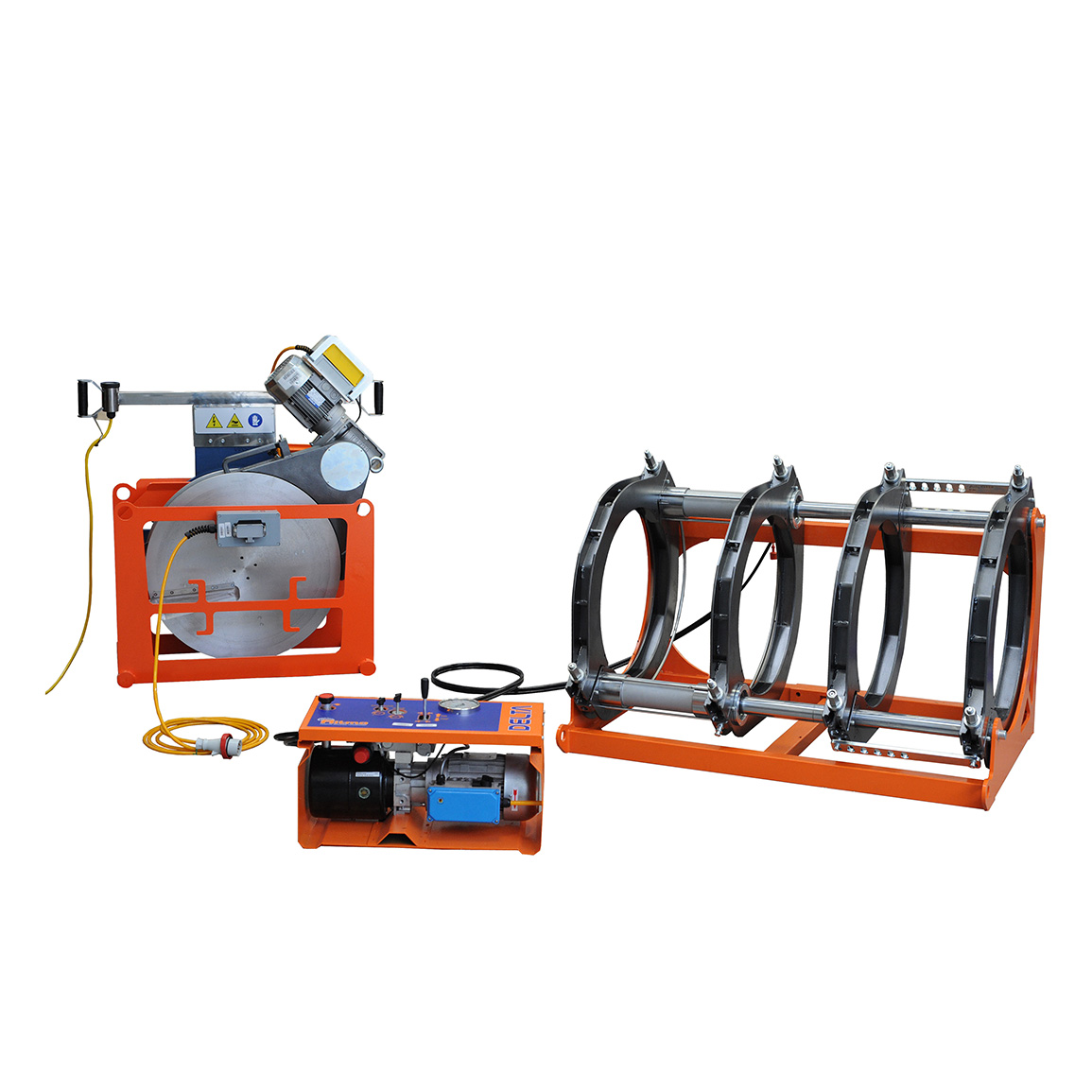

The Delta range are self-aligning machines, suitable for welding ducts for the transport of water, gas and other fluids under pressure. It’s possible to weld fittings such as elbows, tees and stub ends with the third clamp on the Delta range which can be anchored to the first and second (movable) and can slide along with the pipe.
Product variant details
| Qty In Quote | Model | Working Range (mm) | Weight (kg) | Code |
|---|---|---|---|---|
| Delta 500 | 200 - 500 | 230 (body) 408 (total) | RB500 | |
| Delta 630 | 280 - 630 | 415 (body) 708 (total) | RB630 | |
| Delta 800 | 500 - 800 | 821 (body) 1260 (total) | RB800 | |
| Delta 1000 | 630 - 1000 | 2090 (body) 2942 (total) | RB1000 | |
| Delta 1200 | 710 - 1200 | 2500 (body) 830 (trolley) | RB1200 | |
| Delta 1600 HDR (Hydraulic Clamps) | 800 - 1600 | 4800 (body) 1580 (milling cutter / heating plate / support) | RB1600 |
Key Benefits
- Has a self-detaching device to help remove the heating plate during welding procedure
- Working range from 500mm Ø to 1600mm Ø
- Extractable electric milling cutter for leveling the ends of the pipe and/or fitting
- Milling cutter and heating plate support with electronic thermoregulator for control of working temperatures
