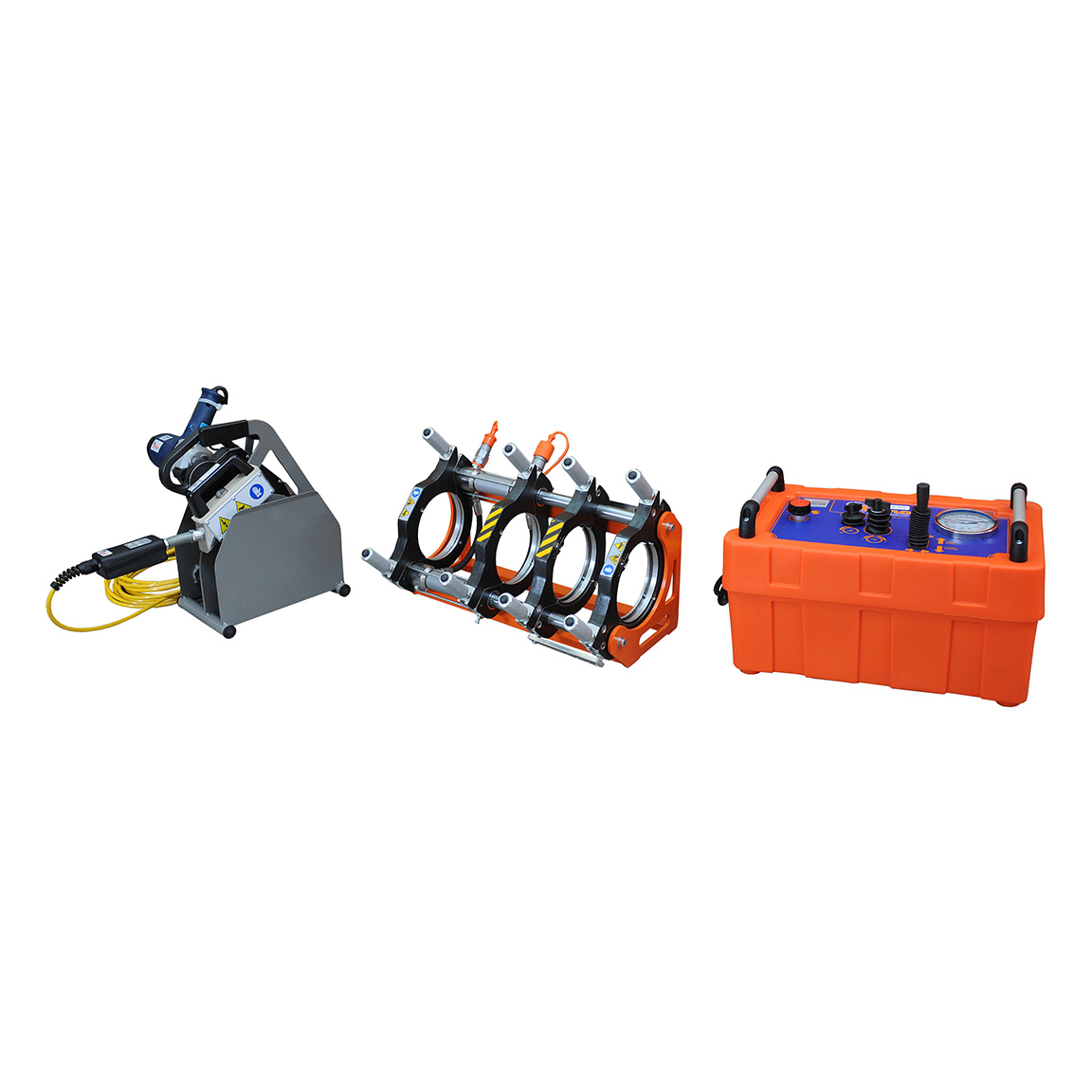

Buttwelding Machine Basic Line
Buttwelding Machine Basic Line
The Basic welders have four clamps and two hydraulic cylinders with fast non-drip couplings, suitable for welding HDPE pipes for transport of water and other fluids under pressure up to 355mm Ø. They are able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by fixing the clamp’s drag bar. The Basic welders have four clamps and two hydraulic cylinders with fast non-drip couplings, suitable for welding HDPE pipes for transport of water and other fluids under pressure up to 355mm Ø. They are able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by fixing the clamp’s drag bar.
Product variant details
| Qty In Quote | Model | Working Range (mm) | Weight (kg) |
|---|---|---|---|
| Basic 160 | 40 - 160 | 32 (body) 77 (total) | |
| Basic 250 | 75 - 250 | 63 (body) 124 (total) | |
| Basic 315 | 90 - 315 | 86 (body) 166 (total) | |
| Basic 355 | 125 - 355 | 355 100 (body) 205 (total) |
Key Benefits
- Self-aligning
- Suitable for welding under-pressure pipes for water, gas and other fluids
- Able to weld fittings like elbows, tees, Y-branches and flange necks
- Hydraulic hoses with non-drip quick couplings
- Extractable milling cutter with safety micro-switch
- Extractable heating plate with high precision electronic thermos-regulator
