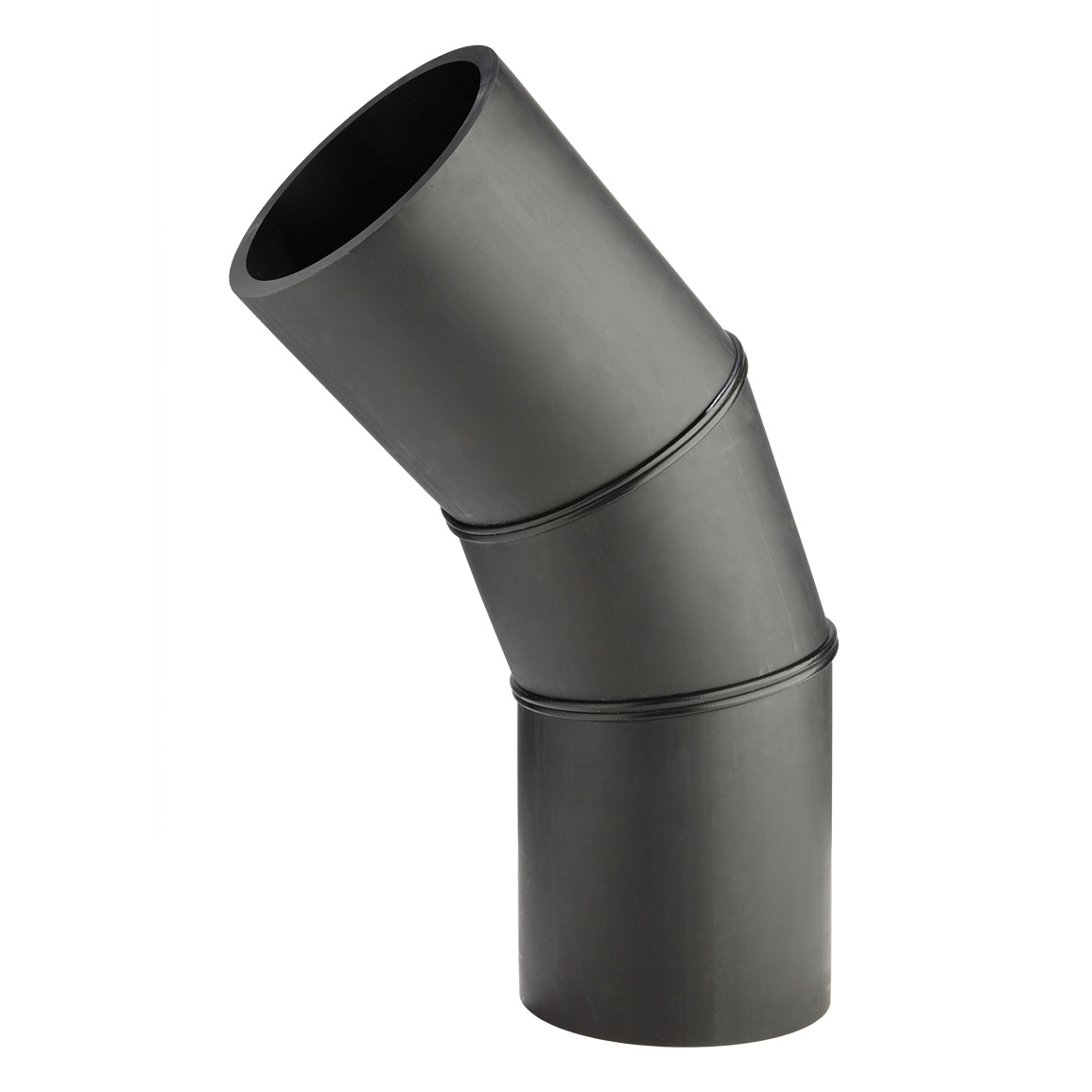

Segmented Bends 45°

PE100
SDR11/17
PN16/10

Segmented Bends 45°

PE100
SDR11/17
PN16/10

Product variant details

Qty In Quote	Size D (mm)	Code	Centre to Face Z (mm)	R (mm)	Spigot Length L (mm)	SDR	PN
SDR: 17 PN: 10 Size D (mm): 800 Add to QuoteUpdate Quote Cancel	800	SEG4580017	847	1200	350	17	10
SDR: 17 PN: 10 Size D (mm): 900 Add to QuoteUpdate Quote Cancel	900	SEG4590017	781	1350	400	17	10
SDR: 17 PN: 10 Size D (mm): 1000 Add to QuoteUpdate Quote Cancel	1000	SEG45100017	1022	1500	400	17	10
SDR: 17 PN: 10 Size D (mm): 1200 Add to QuoteUpdate Quote Cancel	1200	SEG45120017	1005	1800	500	17	10
SDR: 11 PN: 16 Size D (mm): 1000 Add to QuoteUpdate Quote Cancel	1000	SEG45100011	1022	1500	400	11	16
SDR: 11 PN: 16 Size D (mm): 1200 Add to QuoteUpdate Quote Cancel	1200	SEG45120011	1005	1800	500	11	16
SDR: 17 PN: 10 Size D (mm): 90 Add to QuoteUpdate Quote Cancel	90	SEG459017	156	135	100	17	10
SDR: 17 PN: 10 Size D (mm): 110 Add to QuoteUpdate Quote Cancel	110	SEG4511017	168	165	100	17	10
SDR: 17 PN: 10 Size D (mm): 125 Add to QuoteUpdate Quote Cancel	125	SEG4512517	227	188	150	17	10
SDR: 17 PN: 10 Size D (mm): 140 Add to QuoteUpdate Quote Cancel	140	SEG4514017	237	210	150	17	10
SDR: 17 PN: 10 Size D (mm): 160 Add to QuoteUpdate Quote Cancel	160	SEG4516017	249	240	150	17	10
SDR: 17 PN: 10 Size D (mm): 180 Add to QuoteUpdate Quote Cancel	180	SEG4518017	261	270	150	17	10
SDR: 17 PN: 10 Size D (mm): 200 Add to QuoteUpdate Quote Cancel	200	SEG4520017	274	300	150	17	10
SDR: 17 PN: 10 Size D (mm): 225 Add to QuoteUpdate Quote Cancel	225	SEG4522517	290	338	150	17	10
SDR: 17 PN: 10 Size D (mm): 250 Add to QuoteUpdate Quote Cancel	250	SEG4525017	412	375	250	17	10
SDR: 17 PN: 10 Size D (mm): 280 Add to QuoteUpdate Quote Cancel	280	SEG4528017	474	420	250	17	10
SDR: 17 PN: 10 Size D (mm): 315 Add to QuoteUpdate Quote Cancel	315	SEG4531517	498	477	300	17	10
SDR: 17 PN: 10 Size D (mm): 355 Add to QuoteUpdate Quote Cancel	355	SEG4535517	520	533	300	17	10
SDR: 17 PN: 10 Size D (mm): 400 Add to QuoteUpdate Quote Cancel	400	SEG4540017	548	600	300	17	10
SDR: 17 PN: 10 Size D (mm): 450 Add to QuoteUpdate Quote Cancel	450	SEG4545017	580	675	300	17	10
SDR: 17 PN: 10 Size D (mm): 500 Add to QuoteUpdate Quote Cancel	500	SEG4550017	665	750	350	17	10
SDR: 17 PN: 10 Size D (mm): 560 Add to QuoteUpdate Quote Cancel	560	SEG4556017	698	840	350	17	10
SDR: 17 PN: 10 Size D (mm): 630 Add to QuoteUpdate Quote Cancel	630	SEG4563017	741	945	350	17	10
SDR: 17 PN: 10 Size D (mm): 710 Add to QuoteUpdate Quote Cancel	710	SEG4571017	791	1065	350	17	10
SDR: 11 PN: 16 Size D (mm): 90 Add to QuoteUpdate Quote Cancel	90	SEG459011	156	135	100	11	16
SDR: 11 PN: 16 Size D (mm): 110 Add to QuoteUpdate Quote Cancel	110	SEG4511011	168	165	100	11	16
SDR: 11 PN: 16 Size D (mm): 125 Add to QuoteUpdate Quote Cancel	125	SEG4512511	227	188	150	11	16
SDR: 11 PN: 16 Size D (mm): 140 Add to QuoteUpdate Quote Cancel	140	SEG4514011	237	210	150	11	16
SDR: 11 PN: 16 Size D (mm): 160 Add to QuoteUpdate Quote Cancel	160	SEG4516011	249	240	150	11	16
SDR: 11 PN: 16 Size D (mm): 180 Add to QuoteUpdate Quote Cancel	180	SEG4518011	261	270	150	11	16
SDR: 11 PN: 16 Size D (mm): 200 Add to QuoteUpdate Quote Cancel	200	SEG4520011	274	300	150	11	16
SDR: 11 PN: 16 Size D (mm): 225 Add to QuoteUpdate Quote Cancel	225	SEG4522511	290	338	150	11	16
SDR: 11 PN: 16 Size D (mm): 250 Add to QuoteUpdate Quote Cancel	250	SEG4525011	412	375	250	11	16
SDR: 11 PN: 16 Size D (mm): 280 Add to QuoteUpdate Quote Cancel	280	SEG4528011	474	420	250	11	16
SDR: 11 PN: 16 Size D (mm): 315 Add to QuoteUpdate Quote Cancel	315	SEG4531511	498	477	300	11	16
SDR: 11 PN: 16 Size D (mm): 355 Add to QuoteUpdate Quote Cancel	355	SEG4535511	520	533	300	11	16
SDR: 11 PN: 16 Size D (mm): 400 Add to QuoteUpdate Quote Cancel	400	SEG4540011	548	600	300	11	16
SDR: 11 PN: 16 Size D (mm): 450 Add to QuoteUpdate Quote Cancel	450	SEG4545011	580	675	300	11	16
SDR: 11 PN: 16 Size D (mm): 500 Add to QuoteUpdate Quote Cancel	500	SEG4550011	665	750	350	11	16
SDR: 11 PN: 16 Size D (mm): 560 Add to QuoteUpdate Quote Cancel	560	SEG4556011	698	840	350	11	16
SDR: 11 PN: 16 Size D (mm): 630 Add to QuoteUpdate Quote Cancel	630	SEG4563011	741	945	350	11	16
SDR: 11 PN: 16 Size D (mm): 710 Add to QuoteUpdate Quote Cancel	710	SEG4571011	791	1065	350	11	16
SDR: 11 PN: 16 Size D (mm): 800 Add to QuoteUpdate Quote Cancel	800	SEG4580011	847	1200	350	11	16
SDR: 11 PN: 16 Size D (mm): 900 Add to QuoteUpdate Quote Cancel	900	SEG4590011	781	1350	400	11	16
