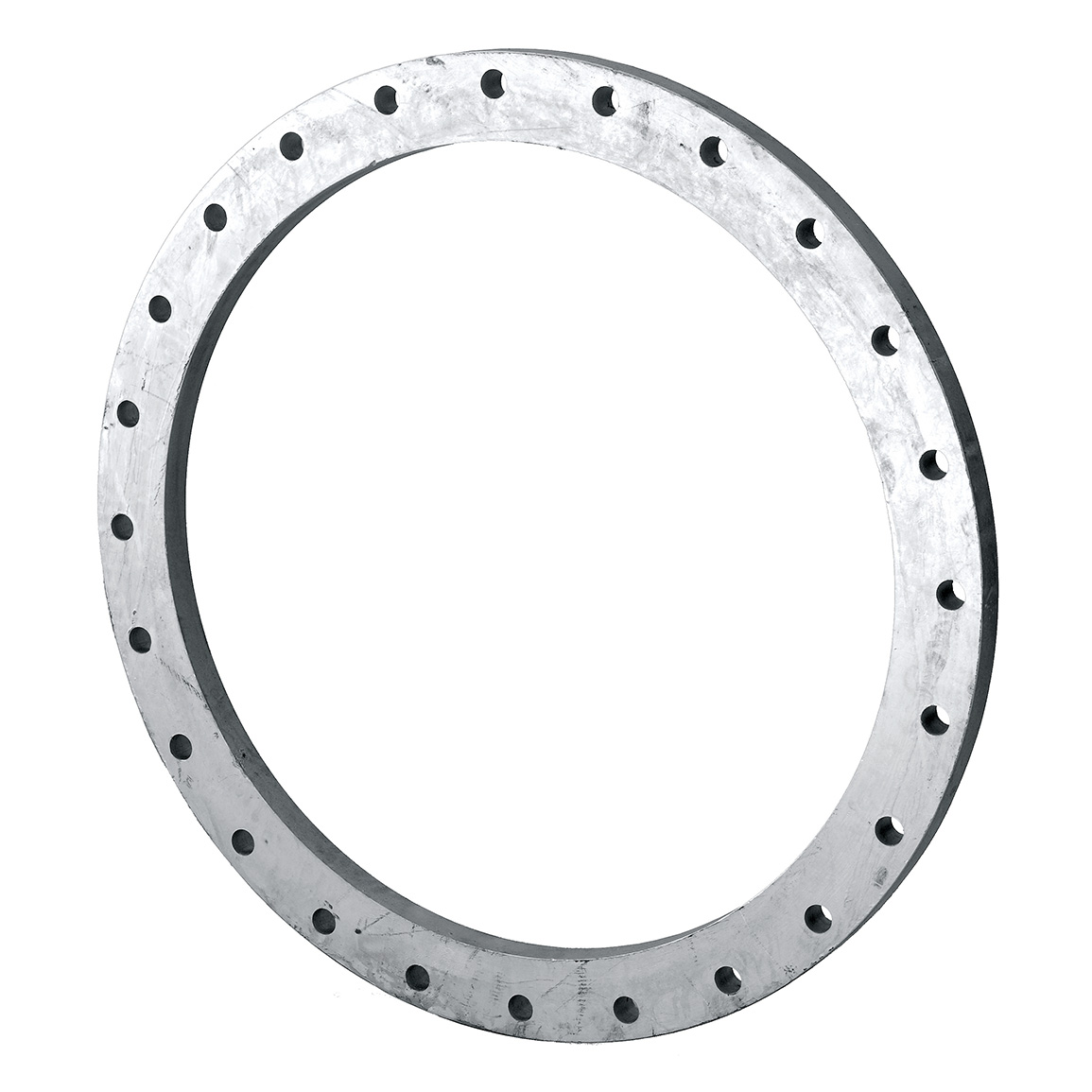

| Qty In Quote | PE Pipe Size (mm) | Code | PN | Flange Size | OD (mm) | PCD (mm) | ID (mm) | TH (mm) | Bolt Holes No x D (mm) | Bolt Size | Weight (kg) |
|---|
|
|
400 | GBR40035 | 35 | 16" | 610 | 552 | 430 | 48 | 20 x 30 | M27 | 42.52 |
|
|
450 | GBR45035 | 35 | 18" | 675 | 610 | 470 | 58 | 20 x 33 | M30 | 61.32 |
|
|
500 | GBR50035 | 35 | 20" | 735 | 673 | 533 | 58 | 24 x 33 | M30 | 72.45 |
|
|
630 | GBR63035 | 35 | 24" | 850 | 781 | 645 | 68 | 24 x 36 | M33 | 86.91 |
|
|
710 | GBR71035 | 35 | 28" | 935 | 857 | 740 | 78 | 24 x 36 | M33 | 122.96 |
|
|
800 | GBR80035 | 35 | 32" | 1060 | 984 | 843 | 84 | 28 x 36 | M33 | 284.36 |
|
|
900 | GBR90035 | 35 | 36" | 1185 | 1105 | 947 | 94 | 32 x 39 | M36 | 259.68 |
|
|
1000 | GBR100035 | 35 | 40" | 1275 | 1194 | 1050 | 98 | 36 x 39 | M36 | 286.27 |
|
|
1200 | GBR120035 | 35 | 48" | 1530 | 1441 | 1270 | 108 | 40 x 42 | M39 | 427.85 |
|
|
630 | GBR63021 | 21 | 24" | 850 | 781 | 645 | 58 | 24 x 36 | M33 | 82.66 |
|
|
710 | GBR71021 | 21 | 28" | 935 | 857 | 740 | 58 | 24 x 36 | M33 | 91.43 |
|
|
800 | GBR80021 | 21 | 32" | 1060 | 984 | 843 | 68 | 28 x 36 | M33 | 167.96 |
|
|
900 | GBR90021 | 21 | 36" | 1185 | 1105 | 947 | 68 | 32 x 39 | M36 | 187.85 |
|
|
1000 | GBR100021 | 21 | 40" | 1275 | 1194 | 1050 | 78 | 36 x 39 | M36 | 227.85 |
|
|
1200 | GBR120021 | 21 | 48" | 1530 | 1441 | 1270 | 88 | 40 x 42 | M39 | 348.61 |
|
|
63 | GBR6335 | 35 | 2" | 165 | 127 | 78 | 19 | 4 x 18 | M16 | 1.77 |
|
|
75 | GBR7535 | 35 | 2 1/2" | 185 | 146 | 92 | 19 | 8 x 18 | M16 | 2.05 |
|
|
90 | GBR9035 | 35 | 3" | 205 | 165 | 108 | 24 | 8 x 18 | M16 | 3.16 |
|
|
110 | GBR11035 | 35 | 4" | 230 | 191 | 128 | 24 | 8 x 18 | M16 | 4.22 |
|
|
125 | GBR12535 | 35 | 4" | 230 | 191 | 140 | 24 | 8 x 18 | M16 | 3.36 |
|
|
160 | GBR16035 | 35 | 6" | 305 | 260 | 178 | 31 | 12 x 22 | M20 | 8.44 |
|
|
180 | GBR18035 | 35 | 6" | 305 | 260 | 195 | 31 | 12 x 22 | M20 | 7.24 |
|
|
200 | GBR20035 | 35 | 8" | 370 | 324 | 235 | 31 | 12 x 22 | M20 | 10.37 |
|
|
225 | GBR22535 | 35 | 8" | 370 | 324 | 238 | 31 | 12 x 22 | M20 | 10.2 |
|
|
225 | GBR225935 | 35 | 9" | 405 | 356 | 238 | 38 | 12 x 26 | M24 | 17.25 |
|
|
250 | GBR25035 | 35 | 10" | 430 | 381 | 288 | 38 | 12 x 26 | M24 | 17.86 |
|
|
280 | GBR28035 | 35 | 10" | 430 | 381 | 300 | 38 | 12 x 26 | M24 | 16.47 |
|
|
315 | GBR31535 | 35 | 12" | 490 | 438 | 338 | 38 | 16 x 26 | M24 | 19.59 |
|
|
355 | GBR35535 | 35 | 14" | 550 | 495 | 376 | 48 | 16 x 30 | M27 | 37.42 |
|
|
900 | GBR90016 | 16 | 36" | 1175 | 1092 | 947 | 66 | 24 x 36 | M33 | 182.33 |
|
|
1000 | GBR100016 | 16 | 40" | 1255 | 1175 | 1050 | 66 | 24 x 36 | M33 | 192.8 |
|
|
1200 | GBR120016 | 16 | 48" | 1490 | 1410 | 1270 | 76 | 32 x 36 | M33 | 301.08 |
|
|
63 | GBR6321 | 21 | 2" | 165 | 127 | 78 | 15 | 4 x 18 | M16 | 1.4 |
|
|
75 | GBR7521 | 21 | 2 1/2" | 185 | 146 | 92 | 15 | 8 x 18 | M16 | 1.62 |
|
|
90 | GBR9021 | 21 | 3" | 205 | 165 | 108 | 15 | 8 x 18 | M16 | 1.95 |
|
|
110 | GBR11021 | 21 | 4" | 230 | 191 | 128 | 19 | 8 x 18 | M16 | 3.34 |
|
|
125 | GBR12521 | 21 | 4" | 230 | 191 | 140 | 19 | 8 x 18 | M16 | 2.66 |
|
|
160 | GBR16021 | 21 | 6" | 305 | 260 | 178 | 24 | 12 x 22 | M20 | 6.53 |
|
|
180 | GBR18021 | 21 | 6" | 305 | 260 | 195 | 24 | 12 x 22 | M20 | 5.61 |
|
|
200 | GBR20021 | 21 | 8" | 370 | 324 | 235 | 24 | 12 x 22 | M20 | 8.03 |
|
|
225 | GBR22521 | 21 | 8" | 370 | 324 | 238 | 24 | 12 x 22 | M20 | 7.9 |
|
|
225 | GBR225921 | 21 | 9" | 405 | 356 | 238 | 30 | 12 x 26 | M24 | 13.62 |
|
|
250 | GBR25021 | 21 | 10" | 430 | 381 | 288 | 30 | 12 x 26 | M24 | 14.1 |
|
|
280 | GBR28021 | 21 | 10" | 430 | 381 | 300 | 30 | 12 x 26 | M24 | 13.01 |
|
|
315 | GBR31521 | 21 | 12" | 490 | 438 | 338 | 30 | 16 x 26 | M24 | 15.46 |
|
|
355 | GBR35521 | 21 | 14" | 550 | 495 | 376 | 30 | 16 x 30 | M27 | 23.39 |
|
|
400 | GBR40021 | 21 | 16" | 610 | 552 | 430 | 38 | 20 x 30 | M27 | 33.66 |
|
|
450 | GBR45021 | 21 | 18" | 675 | 610 | 470 | 38 | 20 x 33 | M30 | 40.17 |
|
|
500 | GBR50021 | 21 | 20" | 735 | 673 | 533 | 48 | 24 x 33 | M30 | 59.96 |
|
|
63 | GBR6316 | 16 | 2" | 150 | 114 | 78 | 11 | 4 x 18 | M16 | 1.03 |
|
|
75 | GBR7516 | 16 | 2 1/2" | 165 | 127 | 92 | 11 | 4 x 18 | M16 | 1.19 |
|
|
90 | GBR9016 | 16 | 3" | 185 | 146 | 108 | 11 | 4 x 18 | M16 | 1.45 |
|
|
110 | GBR11016 | 16 | 4" | 215 | 178 | 128 | 13 | 4 x 18 | M16 | 2.29 |
|
|
125 | GBR12516 | 16 | 4" | 215 | 178 | 140 | 13 | 4 x 18 | M16 | 1.93 |
|
|
160 | GBR16016 | 16 | 6" | 280 | 235 | 178 | 13 | 8 x 18 | M16 | 3.54 |
|
|
180 | GBR18016 | 16 | 6" | 280 | 235 | 195 | 13 | 8 x 18 | M16 | 3.04 |
|
|
200 | GBR20016 | 16 | 8" | 335 | 292 | 235 | 19 | 8 x 18 | M16 | 6.36 |
|
|
225 | GBR22516 | 16 | 8" | 335 | 292 | 238 | 19 | 8 x 18 | M16 | 6.2 |
|
|
225 | GBR225916 | 16 | 9" | 370 | 324 | 238 | 19 | 8 x 18 | M16 | 8.63 |
|
|
250 | GBR25016 | 16 | 10" | 405 | 356 | 288 | 19 | 8 x 22 | M20 | 8.93 |
|
|
280 | GBR28016 | 16 | 10" | 405 | 356 | 300 | 19 | 8 x 22 | M20 | 8.24 |
|
|
315 | GBR31516 | 16 | 12" | 455 | 406 | 338 | 23 | 12 x 22 | M20 | 11.86 |
|
|
355 | GBR35516 | 16 | 14" | 525 | 470 | 376 | 30 | 12 x 26 | M24 | 23.39 |
|
|
400 | GBR40016 | 16 | 16" | 580 | 521 | 430 | 30 | 12 x 26 | M24 | 26.58 |
|
|
450 | GBR45016 | 16 | 18" | 640 | 584 | 470 | 30 | 12 x 26 | M24 | 31.72 |
|
|
500 | GBR50016 | 16 | 20" | 705 | 641 | 533 | 38 | 16 x 26 | M24 | 47.47 |
|
|
630 | GBR63016 | 16 | 24" | 825 | 756 | 645 | 48 | 16 x 30 | M27 | 68.41 |
|
|
710 | GBR71016 | 16 | 28" | 910 | 845 | 740 | 56 | 20 x 30 | M27 | 88.28 |
|
|
800 | GBR80016 | 16 | 32" | 1060 | 984 | 843 | 56 | 20 x 36 | M33 | 138.59 |
PN16/21/35
