Corrutech Side Entry Adaptors
Corrutech Side Entry Adaptors

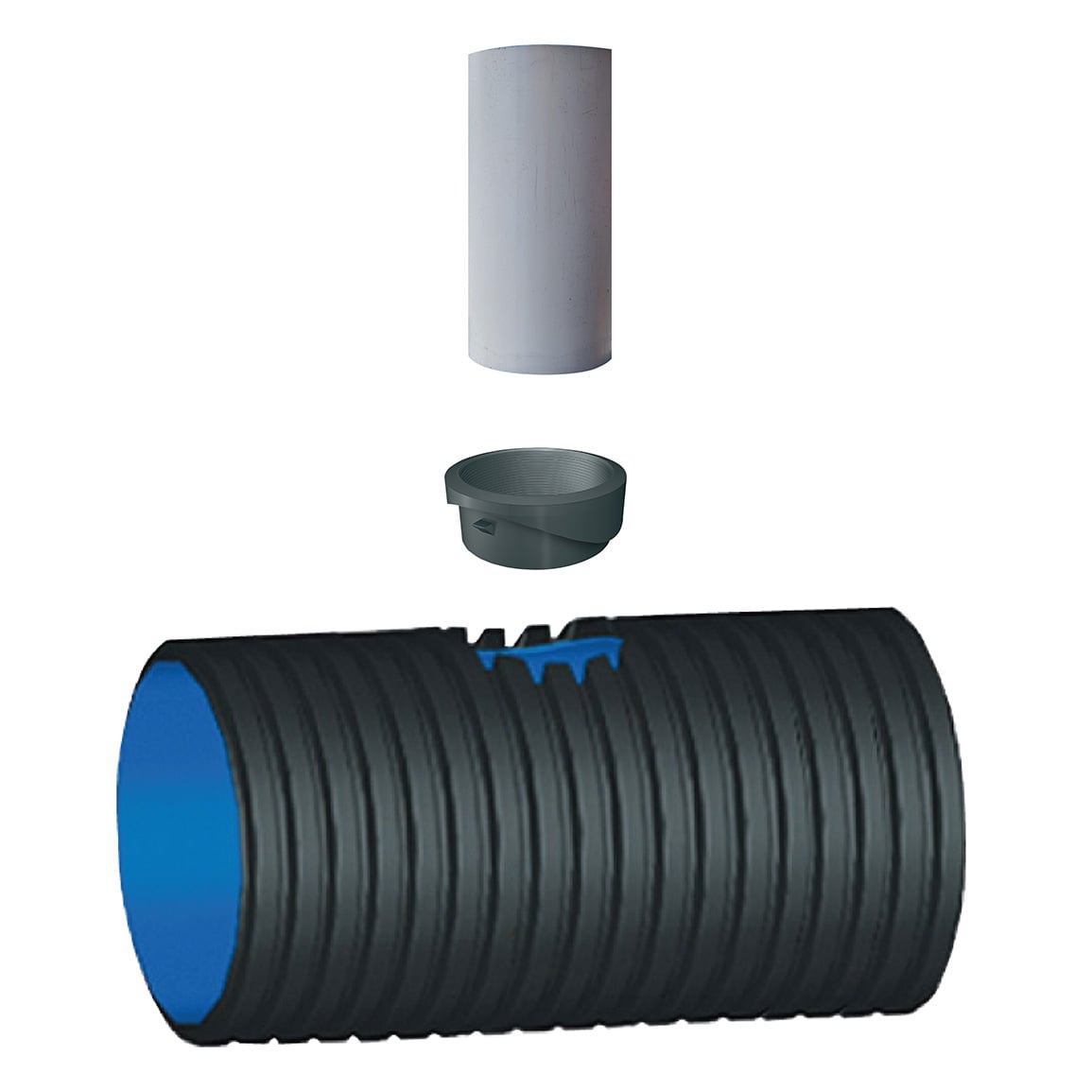

Corrutech Side Entry Adaptors provide a fast, reliable way to connect secondary stormwater lines into a main drain. Designed for simple installation after the primary pipe is in place, they offer an easy solution for a wide range of residental, agricultural, and commercial applications. With options to suit rubbed PE or smoot PVC branches, and sizes ranging from 100mm – 375mm, these adaptors offer versatility for any application.
Product variant details
| Qty In Quote | Size (mm) | Suits Diameter | Code | Description | SN Rating | Side Entry ID | Min. ID Corrutech |
|---|---|---|---|---|---|---|---|
| 110 | 225-450 | 110CSEA225450 | 110mm Ø CSEA TO SUIT ID225-450mm | 8 | 110 | 225 | |
| 110 | 525-900 | 110CSEA525900 | 110mm Ø CSEA TO SUIT ID525-900mm | 8 | 110 | 225 | |
| 160 | 225-450 | 160CSEA225450 | 160mm Ø CSEA TO SUIT ID225-450mm | 8 | 160 | 225 | |
| 160 | 525-900 | 160CSEA525900 | 160mm Ø CSEA TO SUIT ID525-900mm | 8 | 160 | 500 | |
| 200 | 300-450 | 200CSEA300450 | 200mm Ø CSEA TO SUIT ID300-450mm | 8 | 200 | 300 | |
| 200 | 525-900 | 200CSEA525900 | 200mm Ø CSEA TO SUIT ID525-900mm | 8 | 200 | 500 | |
| 250 | 300-450 | 250CSEA300450 | 250mm Ø CSEA TO SUIT ID300-450mm | 8 | 250 | 300 | |
| 250 | 525-900 | 250CSEA525900 | 250mm Ø CSEA TO SUIT ID525-900mm | 8 | 250 | 500 | |
| 300 | 525-900 | 300CSEA525900 | 300mm Ø CSEA TO SUIT ID525-900mm | 8 | 315 | 500 | |
| 375 | 900-1050 | 375CSEA9001050 | 375mm Ø CSEA TO SUIT ID900-1050mm | 8 | 400 | 900 |
Key Benefits
- Branches can be simply installed after main pipe placement
- Extremely cost effective
- Can be installed vertically even when water is flowing
- Fast and user-friendly
- Adaptable – branches can be either ribbed PE or smooth PVC
- Large range of Side Entry Adaptors – 100, 150, 200, 250, 300, 375
