| Qty In Quote | Size (mm) | Code | Description | SN Rating | Internal Dia. (mm) | Outside Dia. (mm) |
|---|
|
|

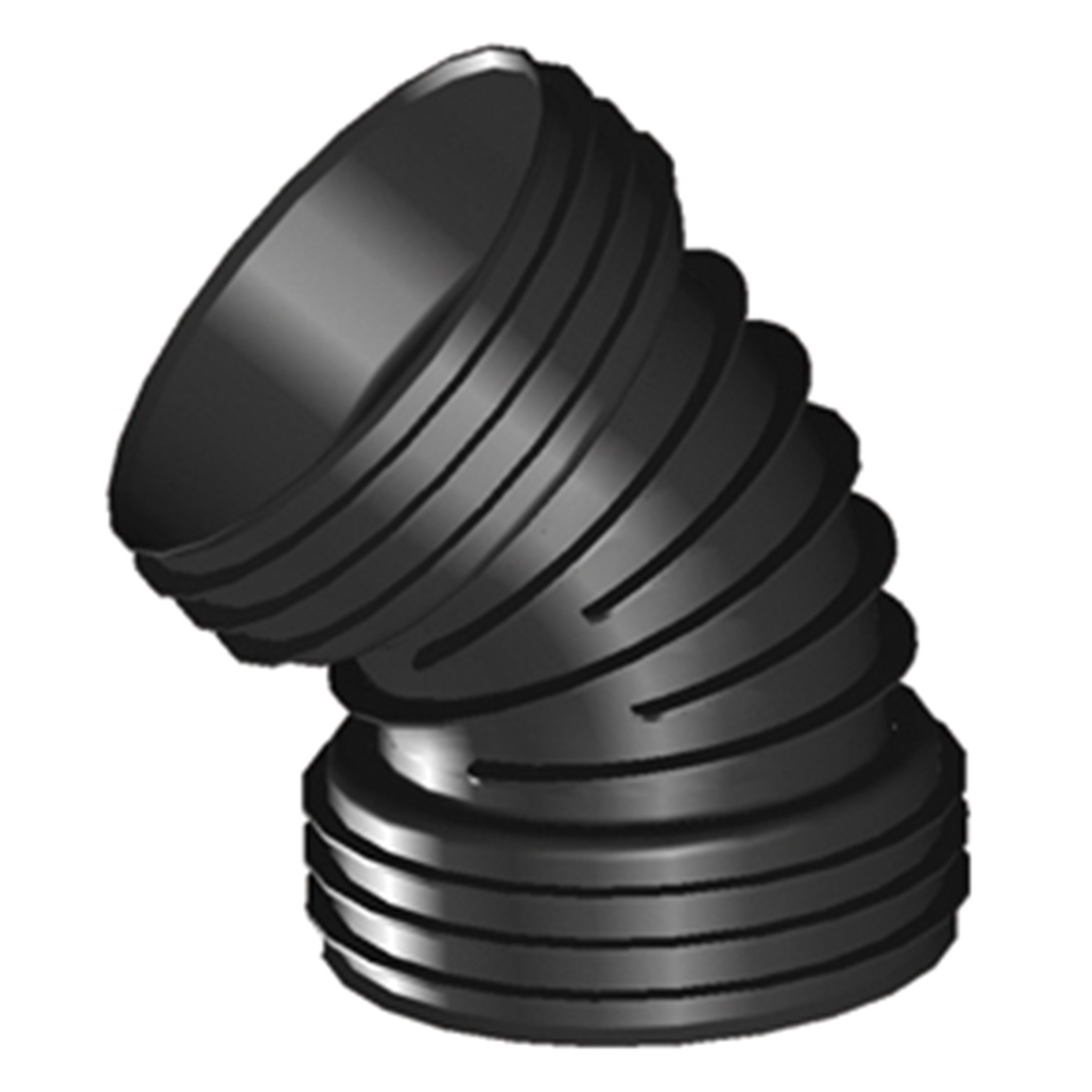

100 | C100458 | 100mm Ø Corrutech 45° Bend | 8 | 81 | 100 |
|
|
150 | C150458 | 150mm Ø Corrutech 45° Bend | 8 | 139 | 159 |
|
|
225 | C225458 | 225mm Ø Corrutech 45° Bend | 8 | 217 | 252 |
|
|
300 | C300458 | 300mm Ø Corrutech 45° Bend | 8 | 296 | 346 |
|
|
375 | C375458 | 375mm Ø Corrutech 45° Bend | 8 | 361 | 419 |
|
|
450 | C450458 | 450mm Ø Corrutech 45° Bend | 8 | 428 | 501 |
|
|
525 | C525458 | 525mm Ø Corrutech 45° Bend | 8 | 515 | 601 |
|
|
600 | C600458 | 600mm Ø Corrutech 45° Bend | 8 | 610 | 719 |
|
|
750 | C750458 | 750mm Ø Corrutech 45° Bend | 8 | 800 | 935 |
|
|
900 | C900458 | 900mm Ø Corrutech 45° Bend | 8 | 851 | 1000 |
|
|
1050 | C1050458 | 1050mm Ø Corrutech 45° Bend | 8 | 1020 | 1200 |
|
|
1200 | C1200452 | 1200mm Ø Corrutech 45° Bend | 2 | 1200 | 1380 |
|
|
1400 | C1400452 | 1400mm Ø Corrutech 45° Bend | 2 | 1400 | 1580 |
|
|
1600 | C1600452 | 1600mm Ø Corrutech 45° Bend | 2 | 1600 | 1861 |
|
|
1800 | C1800452 | 1800mm Ø Corrutech 45° Bend | 2 | 1800 | 1980 |
|
|
2000 | C2000452 | 2000mm Ø Corrutech 45° Bend | 2 | 2000 | 2180 |
