Coreflow Lateral Ducts
Coreflow Lateral Ducts

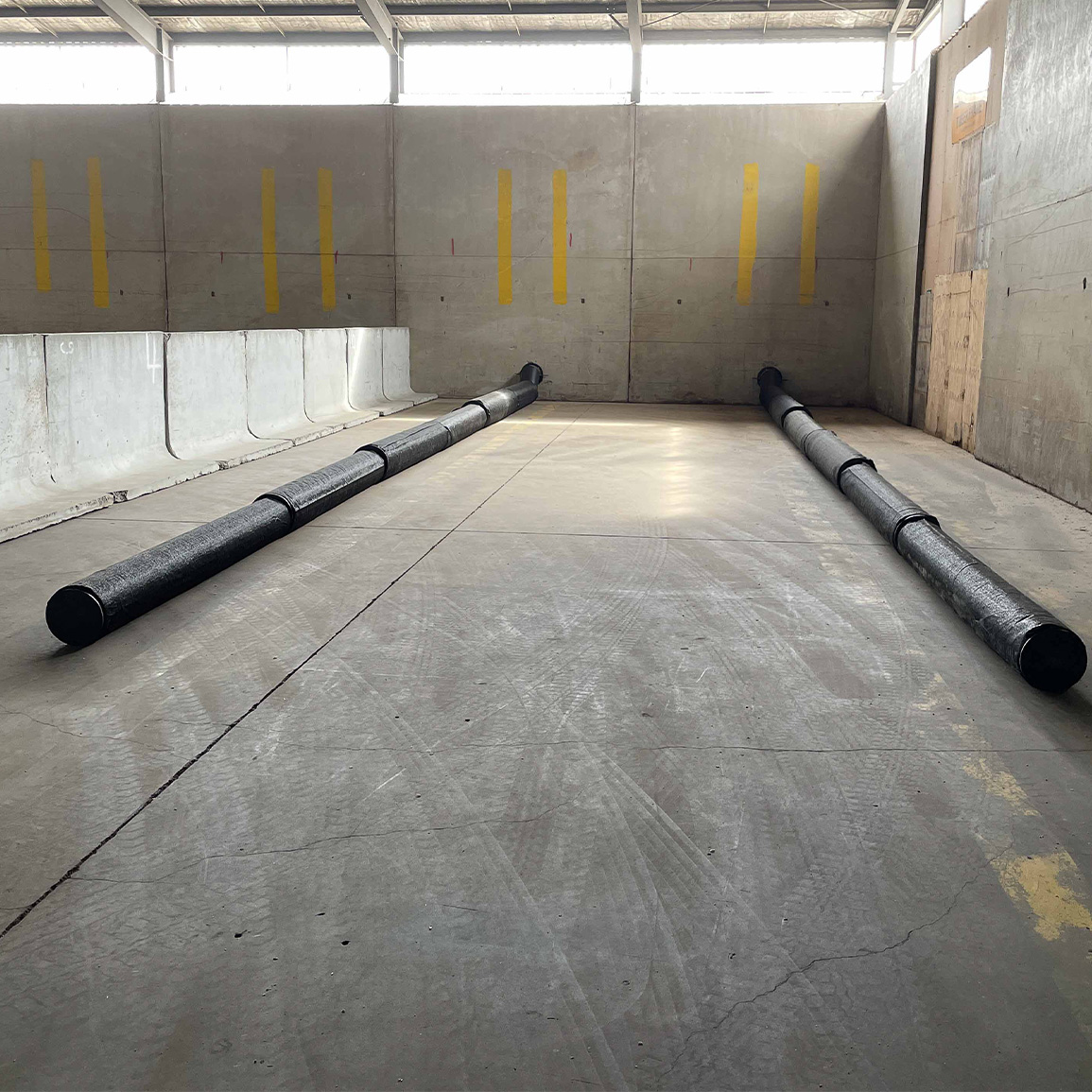

Coreflow Lateral Ducts are constructed from our very own Corrutech Twin wall pipe and are largely used in commercial applications where the shed is used primarily for crop storage. Coreflow Lateral ducts are horizontal air ducts that are connected to floor height holes in the wall of a grain store and run in long stretches underneath the crop. Often sheds are converted to having the ability to use Lateral Ducts. The main reason is for ease and effectiveness of bringing the crop in, maintaining crop quality and then efficiently getting the crop back out. They provide a vert even & thorough spread of airflow throughout a crop. The Range of Coreflow Lateral Ducts comes in diameters from 100mm through to 600mm in 3m lengths. Along with this, we make HDPE Joiners, Reducers, End caps, butterfly valves and specialised sleeves.
Product variant details
| Qty In Quote | Size (mm) | Length (m) | Code | Description |
|---|---|---|---|---|
| 436 | 2 | CSW435162 | 436mm (OD501mm) Coreflow Pipe 2mtr Length | |
| 436 | 3 | CSW435163 | 436mm (OD501mm) Coreflow Pipe 3mtr Length | |
| 515 | 2 | CSW600162 | 515mm (OD595) Coreflow Pipe 2mtr Length | |
| 515 | 3 | CSW600163 | 515mm (OD595) Coreflow Pipe 3mtr Length | |
| 610 | 2 | CSW700162 | 610mm (OD710) Coreflow Pipe 2mtr Length | |
| 610 | 3 | CSW700163 | 610mm (OD710) Coreflow Pipe 3mtr Length |
Key Features
- Even distribution of airflow is assured. This is thanks to the unique ribbing and large holes that keep large crops free from storage insects and moulds.
- Strong but lightweight, Corrutech™ is user friendly creating much faster & more simplified installation.
- Plastic material as apposed to metal has a large impact on workplace safety by saving backs, lacerations from metal burs & more!
- Coreflow Lateral Ducts have an excellent strength rating due to their structural design integrity through the corrugated external wall. Research has proven that the minimal pipe deflection caused by the pressure of crop storage has little or no permanent effect. Due to the unique material compound having a memory, any deflection usually reverts itself to its original shape.
