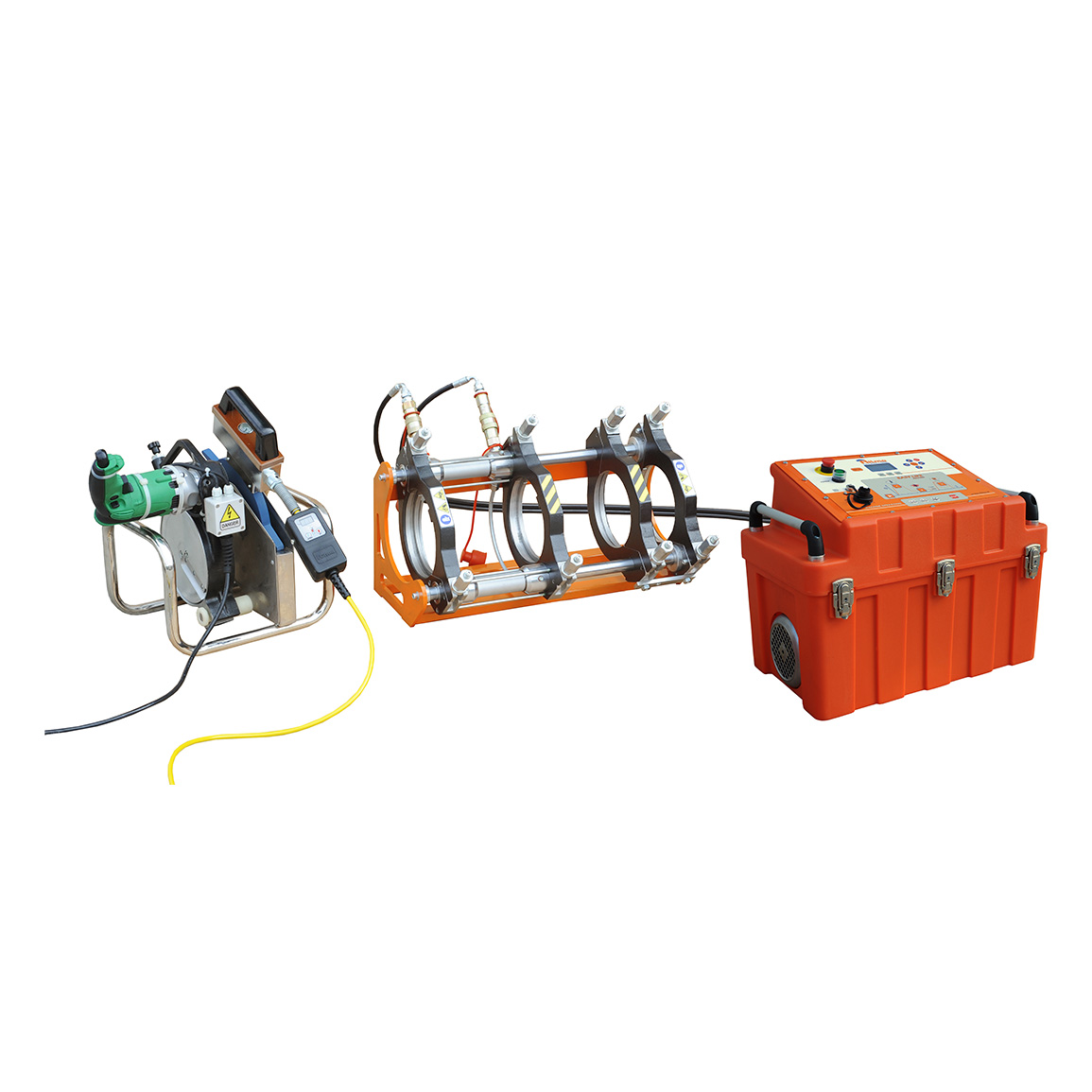

Buttwelding Machine Basic and Delta Easy Life - Semi Automatic
Buttwelding Machine Basic and Delta Easy Life - Semi Automatic
The Easy Life system is able to manage the welding process in a semi-automatic way thanks to the electrohydraulic gearcase. The welder’s electronic system allows for the continuous repeat of welding cycles and automatic control of preset parameters. Therefore, the operator only needs to validate the welding phases. They are able to weld fittings such as elbows, tees, Y-branches and flange necks without additional equipment.
Product variant details
| Qty In Quote | Model | Working Range (mm) | Code | Weight (kg) |
|---|---|---|---|---|
| Basic 160 Easy Life | 40 - 160 | B160EL | 32 (body) 88 (total) | |
| Basic 200 Easy Life | 63 - 200 | B200EL | 39 (body) 100 (total) | |
| Basic 250 Easy Life | 75 - 250 | B250EL | 63 (body) 132 (total) | |
| Basic 315 Easy Life | 90 - 315 | B315EL | 86 (body) 174 (total) | |
| Basic 355 Easy Life | 125 - 355 | B355EL | 100 (body) 216 (total) | |
| Delta 500 Easy Life | 200 - 500 | B500EL | 230 (body) 418 (total) | |
| Delta 630 Easy Life | 280 - 630 | B630EL | 415 (body) 700 (total) |
Key Benefits
- Can store up to 4000 welding cycles
- Able to weld HDPE pipe up to 630mm Ø
- Can have 50 pre-set customised welding cycles
- Easy Life system data logging shows the time
- Extractable heating plate
- Extractable milling cutter with safety micro-switch
- Electrohydraulic gearcase
- Hydraulic hoses with non-drip quick couplings
