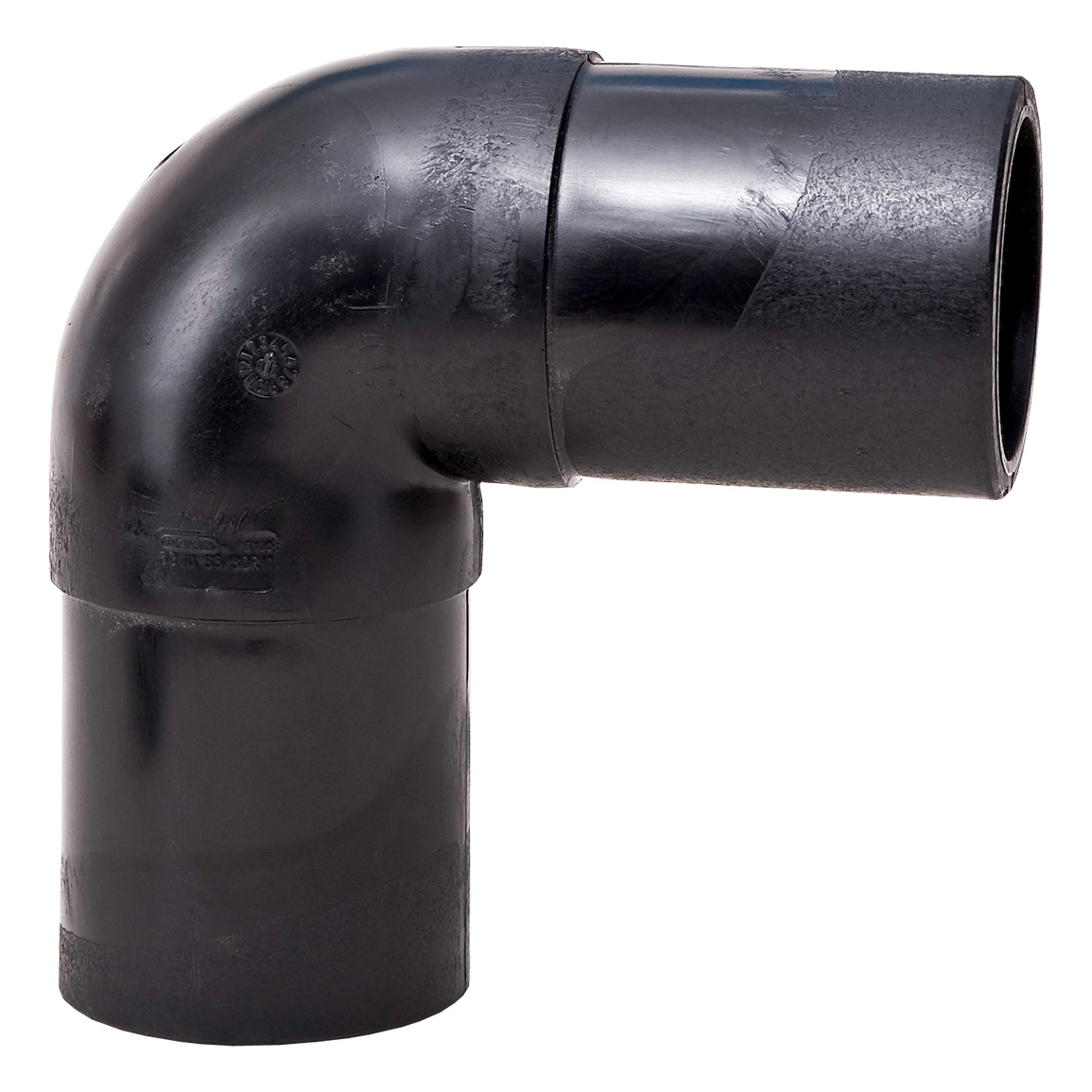

Long Spigot 90° Elbows

PE100
SDR11/17
PN16/10

Long Spigot 90° Elbows

PE100
SDR11/17
PN16/10

Product variant details

Qty In Quote	Size D (mm)	Code	L (mm)	Z (mm)	Weight (kg)	SDR	PN
SDR: 11 PN: 16 Size D (mm): 20 Add to QuoteUpdate Quote Cancel	20	LS209011	41	57	0.03	11	16
SDR: 11 PN: 16 Size D (mm): 25 Add to QuoteUpdate Quote Cancel	25	LS259011	41	60	0.04	11	16
SDR: 11 PN: 16 Size D (mm): 32 Add to QuoteUpdate Quote Cancel	32	LS329011	44	67	0.05	11	16
SDR: 11 PN: 16 Size D (mm): 40 Add to QuoteUpdate Quote Cancel	40	LS409011	40	77	0.09	11	16
SDR: 11 PN: 16 Size D (mm): 50 Add to QuoteUpdate Quote Cancel	50	LS509011	55	90	0.15	11	16
SDR: 11 PN: 16 Size D (mm): 63 Add to QuoteUpdate Quote Cancel	63	LS639011	63	106	0.24	11	16
SDR: 11 PN: 16 Size D (mm): 75 Add to QuoteUpdate Quote Cancel	75	LS759011	70	119	0.38	11	16
SDR: 11 PN: 16 Size D (mm): 90 Add to QuoteUpdate Quote Cancel	90	LS909011	79	137	0.7	11	16
SDR: 11 PN: 16 Size D (mm): 110 Add to QuoteUpdate Quote Cancel	110	LS1109011	82	153	1.03	11	16
SDR: 11 PN: 16 Size D (mm): 125 Add to QuoteUpdate Quote Cancel	125	LS1259011	87	170	1.5	11	16
SDR: 11 PN: 16 Size D (mm): 140 Add to QuoteUpdate Quote Cancel	140	LS1409011	92	190	1.99	11	16
SDR: 11 PN: 16 Size D (mm): 160 Add to QuoteUpdate Quote Cancel	160	LS1609011	98	201	2.8	11	16
SDR: 11 PN: 16 Size D (mm): 180 Add to QuoteUpdate Quote Cancel	180	LS1809011	105	230	3.9	11	16
SDR: 11 PN: 16 Size D (mm): 200 Add to QuoteUpdate Quote Cancel	200	LS2009011	112	241	5.4	11	16
SDR: 11 PN: 16 Size D (mm): 225 Add to QuoteUpdate Quote Cancel	225	LS2259011	120	265	6.8	11	16
SDR: 11 PN: 16 Size D (mm): 250 Add to QuoteUpdate Quote Cancel	250	LS2509011	130	287	9.2	11	16
SDR: 11 PN: 16 Size D (mm): 280 Add to QuoteUpdate Quote Cancel	280	LS2809011	139	315	12.4	11	16
SDR: 11 PN: 16 Size D (mm): 315 Add to QuoteUpdate Quote Cancel	315	LS3159011	150	345	18.3	11	16
SDR: 11 PN: 16 Size D (mm): 355 Add to QuoteUpdate Quote Cancel	355	LS3559011	155	370	21.8	11	16
SDR: 11 PN: 16 Size D (mm): 400 Add to QuoteUpdate Quote Cancel	400	LS4009011	155	445	30.18	11	16
SDR: 11 PN: 16 Size D (mm): 450 Add to QuoteUpdate Quote Cancel	450	LS4509011	175	485	43.88	11	16
SDR: 11 PN: 16 Size D (mm): 500 Add to QuoteUpdate Quote Cancel	500	LS5009011	185	695	59	11	16
SDR: 11 PN: 16 Size D (mm): 560 Add to QuoteUpdate Quote Cancel	560	LS5609011	300	650	78	11	16
SDR: 11 PN: 16 Size D (mm): 630 Add to QuoteUpdate Quote Cancel	630	LS6309011	320	690	121	11	16
SDR: 17 PN: 10 Size D (mm): 63 Add to QuoteUpdate Quote Cancel	63	LS639017	63	106	0.25	17	10
SDR: 17 PN: 10 Size D (mm): 75 Add to QuoteUpdate Quote Cancel	75	LS759017	70	119	0.38	17	10
SDR: 17 PN: 10 Size D (mm): 90 Add to QuoteUpdate Quote Cancel	90	LS909017	79	137	0.48	17	10
SDR: 17 PN: 10 Size D (mm): 110 Add to QuoteUpdate Quote Cancel	110	LS1109017	82	153	0.77	17	10
SDR: 17 PN: 10 Size D (mm): 125 Add to QuoteUpdate Quote Cancel	125	LS1259017	87	170	1.14	17	10
SDR: 17 PN: 10 Size D (mm): 140 Add to QuoteUpdate Quote Cancel	140	LS1409017	92	190	1.47	17	10
SDR: 17 PN: 10 Size D (mm): 160 Add to QuoteUpdate Quote Cancel	160	LS1609017	98	201	2.1	17	10
SDR: 17 PN: 10 Size D (mm): 180 Add to QuoteUpdate Quote Cancel	180	LS1809017	105	230	3.6	17	10
SDR: 17 PN: 10 Size D (mm): 200 Add to QuoteUpdate Quote Cancel	200	LS2009017	112	241	4.4	17	10
SDR: 17 PN: 10 Size D (mm): 225 Add to QuoteUpdate Quote Cancel	225	LS2259017	120	265	4.95	17	10
SDR: 17 PN: 10 Size D (mm): 250 Add to QuoteUpdate Quote Cancel	250	LS2509017	130	287	6.8	17	10
SDR: 17 PN: 10 Size D (mm): 280 Add to QuoteUpdate Quote Cancel	280	LS2809017	139	315	8.83	17	10
SDR: 17 PN: 10 Size D (mm): 315 Add to QuoteUpdate Quote Cancel	315	LS3159017	150	345	13.5	17	10
SDR: 17 PN: 10 Size D (mm): 355 Add to QuoteUpdate Quote Cancel	355	LS3559017	155	345	15.9	17	10
SDR: 17 PN: 10 Size D (mm): 400 Add to QuoteUpdate Quote Cancel	400	LS4009017	155	370	21.1	17	10
SDR: 17 PN: 10 Size D (mm): 450 Add to QuoteUpdate Quote Cancel	450	LS4509017	175	445	30.97	17	10
SDR: 17 PN: 10 Size D (mm): 500 Add to QuoteUpdate Quote Cancel	500	LS5009017	180	485	42.2	17	10
SDR: 17 PN: 10 Size D (mm): 560 Add to QuoteUpdate Quote Cancel	560	LS5609017	300	695	51	17	10
SDR: 17 PN: 10 Size D (mm): 630 Add to QuoteUpdate Quote Cancel	630	LS6309017	320	690	66.5	17	10
