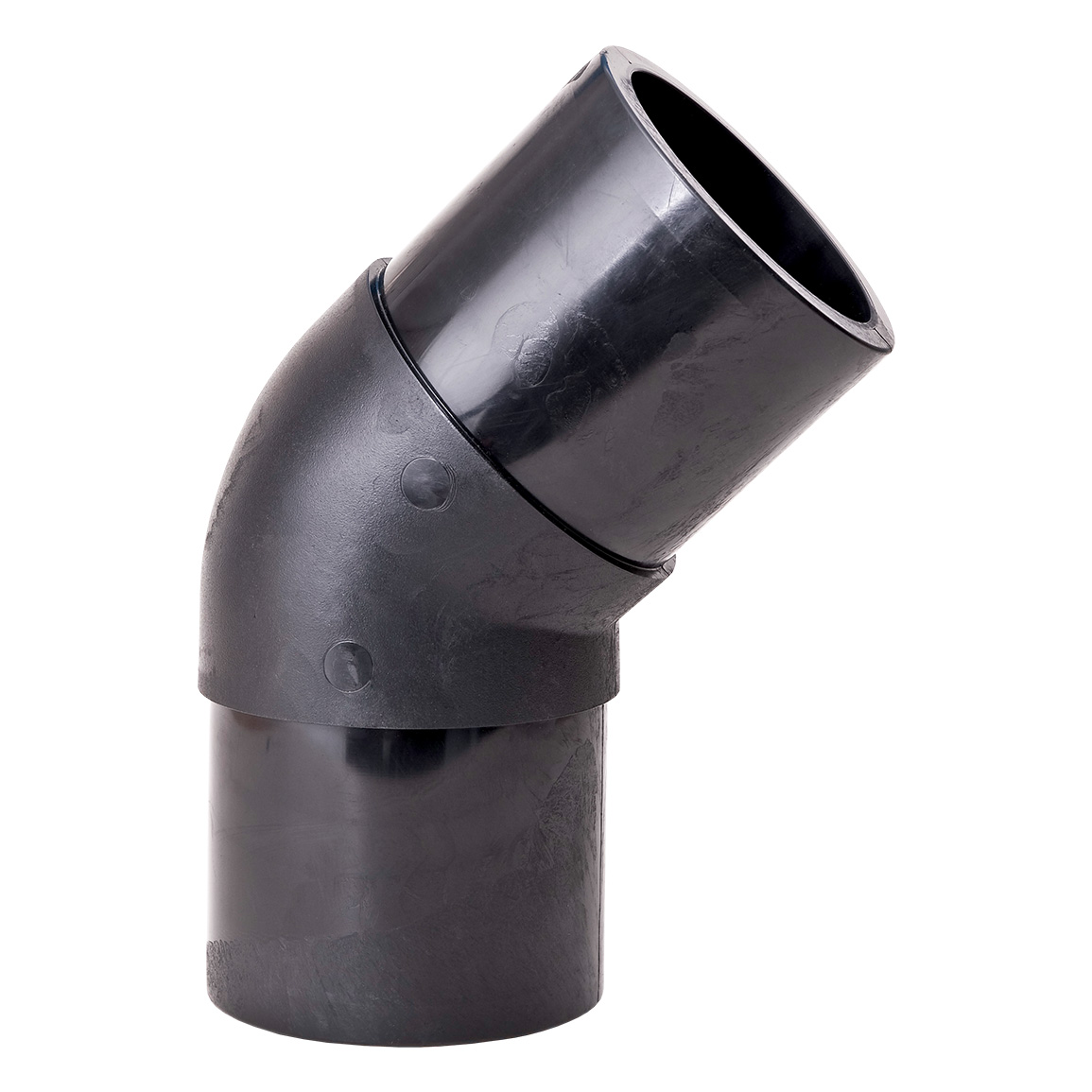

Long Spigot 45° Elbows

PE100
SDR11/17
PN16/10

Long Spigot 45° Elbows

PE100
SDR11/17
PN16/10

Product variant details

Qty In Quote	Size D (mm)	Code	L (mm)	Z (mm)	Weight (kg)	SDR	PN
SDR: 11 PN: 16 Size D (mm): 20 Add to QuoteUpdate Quote Cancel	20	LS204511	41	48	0.02	11	16
SDR: 11 PN: 16 Size D (mm): 25 Add to QuoteUpdate Quote Cancel	25	LS254511	44	50	0.03	11	16
SDR: 11 PN: 16 Size D (mm): 32 Add to QuoteUpdate Quote Cancel	32	LS324511	44	54	0.05	11	16
SDR: 11 PN: 16 Size D (mm): 40 Add to QuoteUpdate Quote Cancel	40	LS404511	49	60	0.08	11	16
SDR: 11 PN: 16 Size D (mm): 50 Add to QuoteUpdate Quote Cancel	50	LS504511	55	72	0.13	11	16
SDR: 11 PN: 16 Size D (mm): 63 Add to QuoteUpdate Quote Cancel	63	LS634511	64	80	0.21	11	16
SDR: 11 PN: 16 Size D (mm): 75 Add to QuoteUpdate Quote Cancel	75	LS754511	70	95	0.31	11	16
SDR: 11 PN: 16 Size D (mm): 90 Add to QuoteUpdate Quote Cancel	90	LS904511	80	104	0.54	11	16
SDR: 11 PN: 16 Size D (mm): 110 Add to QuoteUpdate Quote Cancel	110	LS1104511	82	110	0.83	11	16
SDR: 11 PN: 16 Size D (mm): 125 Add to QuoteUpdate Quote Cancel	125	LS1254511	90	121	1.2	11	16
SDR: 11 PN: 16 Size D (mm): 140 Add to QuoteUpdate Quote Cancel	140	LS1404511	92	150	1.43	11	16
SDR: 11 PN: 16 Size D (mm): 160 Add to QuoteUpdate Quote Cancel	160	LS1604511	98	140	2.2	11	16
SDR: 11 PN: 16 Size D (mm): 180 Add to QuoteUpdate Quote Cancel	180	LS1804511	105	185	3	11	16
SDR: 11 PN: 16 Size D (mm): 200 Add to QuoteUpdate Quote Cancel	200	LS2004511	190	167	3.9	11	16
SDR: 11 PN: 16 Size D (mm): 225 Add to QuoteUpdate Quote Cancel	225	LS2254511	120	265	5.4	11	16
SDR: 11 PN: 16 Size D (mm): 250 Add to QuoteUpdate Quote Cancel	250	LS2504511	130	200	7.2	11	16
SDR: 11 PN: 16 Size D (mm): 280 Add to QuoteUpdate Quote Cancel	280	LS2804511	139	216	9.8	11	16
SDR: 11 PN: 16 Size D (mm): 315 Add to QuoteUpdate Quote Cancel	315	LS3154511	150	240	12.8	11	16
SDR: 11 PN: 16 Size D (mm): 355 Add to QuoteUpdate Quote Cancel	355	LS3554511	145	230	15.38	11	16
SDR: 11 PN: 16 Size D (mm): 400 Add to QuoteUpdate Quote Cancel	400	LS4004511	145	253	21.63	11	16
SDR: 11 PN: 16 Size D (mm): 450 Add to QuoteUpdate Quote Cancel	450	LS4504511	170	310	33	11	16
SDR: 11 PN: 16 Size D (mm): 500 Add to QuoteUpdate Quote Cancel	500	LS5004511	185	335	52	11	16
SDR: 11 PN: 16 Size D (mm): 560 Add to QuoteUpdate Quote Cancel	560	LS5604511	300	475	72	11	16
SDR: 11 PN: 16 Size D (mm): 630 Add to QuoteUpdate Quote Cancel	630	LS6304511	320	505	101	11	16
SDR: 17 PN: 10 Size D (mm): 63 Add to QuoteUpdate Quote Cancel	63	LS634517	64	80	0.2	17	10
SDR: 17 PN: 10 Size D (mm): 75 Add to QuoteUpdate Quote Cancel	75	LS754517	70	95	0.3	17	10
SDR: 17 PN: 10 Size D (mm): 90 Add to QuoteUpdate Quote Cancel	90	LS904517	80	104	0.51	17	10
SDR: 17 PN: 10 Size D (mm): 110 Add to QuoteUpdate Quote Cancel	110	LS1104517	82	110	0.63	17	10
SDR: 17 PN: 10 Size D (mm): 125 Add to QuoteUpdate Quote Cancel	125	LS1254517	90	121	1.05	17	10
SDR: 17 PN: 10 Size D (mm): 140 Add to QuoteUpdate Quote Cancel	140	LS1404517	92	150	1.43	17	10
SDR: 17 PN: 10 Size D (mm): 160 Add to QuoteUpdate Quote Cancel	160	LS1604517	98	140	1.6	17	10
SDR: 17 PN: 10 Size D (mm): 180 Add to QuoteUpdate Quote Cancel	180	LS1804517	105	185	2.05	17	10
SDR: 17 PN: 10 Size D (mm): 200 Add to QuoteUpdate Quote Cancel	200	LS2004517	190	167	3	17	10
SDR: 17 PN: 10 Size D (mm): 225 Add to QuoteUpdate Quote Cancel	225	LS2254517	120	265	3.9	17	10
SDR: 17 PN: 10 Size D (mm): 250 Add to QuoteUpdate Quote Cancel	250	LS2504517	130	200	5.2	17	10
SDR: 17 PN: 10 Size D (mm): 280 Add to QuoteUpdate Quote Cancel	280	LS2804517	139	216	7	17	10
SDR: 17 PN: 10 Size D (mm): 315 Add to QuoteUpdate Quote Cancel	315	LS3154517	150	240	9.9	17	10
SDR: 17 PN: 10 Size D (mm): 355 Add to QuoteUpdate Quote Cancel	355	LS3554517	145	230	10.8	17	10
SDR: 17 PN: 10 Size D (mm): 400 Add to QuoteUpdate Quote Cancel	400	LS4004517	145	253	16	17	10
SDR: 17 PN: 10 Size D (mm): 450 Add to QuoteUpdate Quote Cancel	450	LS4504517	170	310	24	17	10
SDR: 17 PN: 10 Size D (mm): 500 Add to QuoteUpdate Quote Cancel	500	LS5004517	185	335	35	17	10
SDR: 17 PN: 10 Size D (mm): 560 Add to QuoteUpdate Quote Cancel	560	LS5604517	300	475	42	17	10
SDR: 17 PN: 10 Size D (mm): 630 Add to QuoteUpdate Quote Cancel	630	LS6304517	320	505	48	17	10
