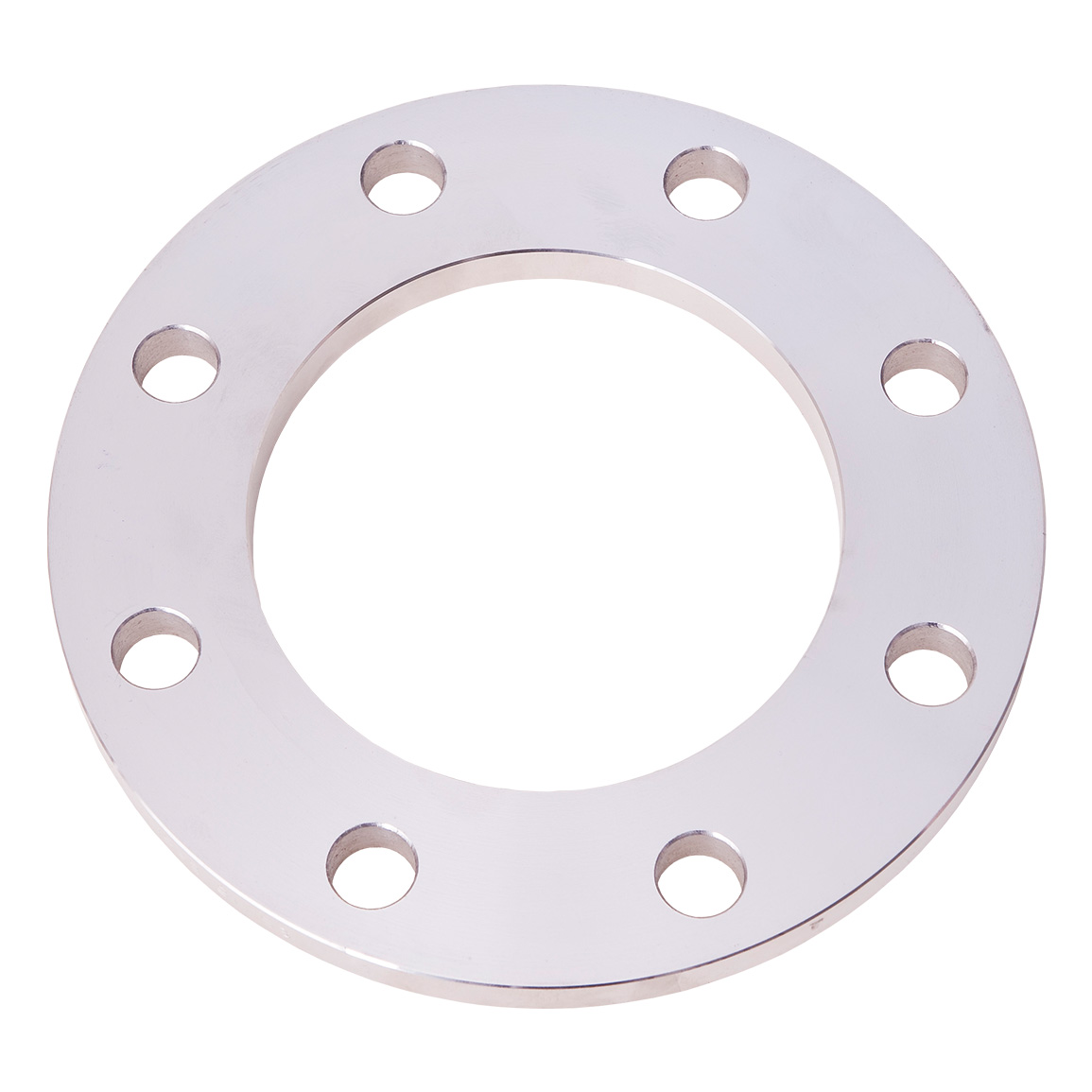

| Qty In Quote | PE Pipe Size (mm) | Code | Flange Size | OD (mm) | PCD (mm) | ID (mm) | TH (mm) | Bolt Holes No x D (mm) | Bolt Size | Weight (kg) |
|---|
|
|
20 | 316BR20E | 1/2" | 95 | 67 | 32 | 8 | 4 x 14 | M12 | 0.36 |
|
|
25 | 316BR25E | 3/4" | 100 | 73 | 37 | 8 | 4 x 14 | M12 | 0.39 |
|
|
32 | 316BR32E | 1" | 115 | 83 | 44 | 8 | 4 x 14 | M12 | 0.52 |
|
|
40 | 316BR40E | 1 1/4" | 120 | 87 | 52 | 8 | 4 x 14 | M12 | 0.54 |
|
|
50 | 316BR50E | 1 1/2" | 135 | 98 | 62 | 9 | 4 x 14 | M12 | 0.76 |
|
|
63 | 316BR63E | 2" | 150 | 114 | 78 | 10 | 4 x 18 | M16 | 0.93 |
|
|
75 | 316BR75E | 2 1/2" | 165 | 127 | 92 | 10 | 4 x 18 | M16 | 1.08 |
|
|
90 | 316BR90E | 3" | 185 | 146 | 108 | 11 | 4 x 18 | M16 | 1.58 |
|
|
110 | 316BR110E | 4" | 215 | 178 | 128 | 13 | 8 x 18 | M16 | 2.19 |
|
|
125 | 316BR1254E | 4" | 215 | 178 | 140 | 13 | 8 x 18 | M16 | 1.93 |
|
|
125 | 316BR1255E | 5" | 255 | 210 | 140 | 14 | 8 x 18 | M16 | 3.71 |
|
|
160 | 316BR160E | 6" | 280 | 235 | 178 | 17 | 8 x 22 | M20 | 4.5 |
|
|
180 | 316BR180E | 6" | 280 | 235 | 195 | 17 | 8 x 22 | M20 | 3.84 |
|
|
200 | 316BR200E | 8" | 335 | 292 | 235 | 19 | 8 x 22 | M20 | 6.24 |
|
|
225 | 316BR225E | 8" | 335 | 292 | 240 | 19 | 8 x 22 | M20 | 5.95 |
|
|
225 | 316BR2259E | 9" | 370 | 324 | 240 | 21 | 12 x 22 | M20 | 8.88 |
|
|
250 | 316BR2509E | 9" | 370 | 324 | 252 | 21 | 12 x 22 | M20 | 8.4 |
|
|
250 | 316BR250E | 10" | 405 | 356 | 290 | 22 | 12 x 22 | M20 | 10.08 |
|
|
280 | 316BR280E | 10" | 405 | 356 | 300 | 22 | 12 x 22 | M20 | 6.73 |
|
|
315 | 316BR315E | 12" | 455 | 406 | 345 | 25 | 12 x 26 | M24 | 12.34 |
|
|
355 | 316BR355E | 14" | 525 | 470 | 376 | 29 | 12 x 26 | M24 | 22.61 |
|
|
400 | 316BR400E | 16" | 580 | 521 | 430 | 32 | 12 x 26 | M24 | 28.36 |
|
|
450 | 316BR450E | 18" | 640 | 584 | 480 | 35 | 16 x 26 | M24 | 33.3 |
|
|
500 | 316BR500E | 20" | 705 | 641 | 533 | 38 | 16 x 26 | M24 | 47.47 |
|
|
560 | 316BR560E | 22" | 760 | 699 | 590 | 44 | 16 x 30 | M27 | 58.49 |
|
|
630 | 316BR630E | 24" | 825 | 756 | 660 | 48 | 16 x 33 | M30 | 67.52 |
