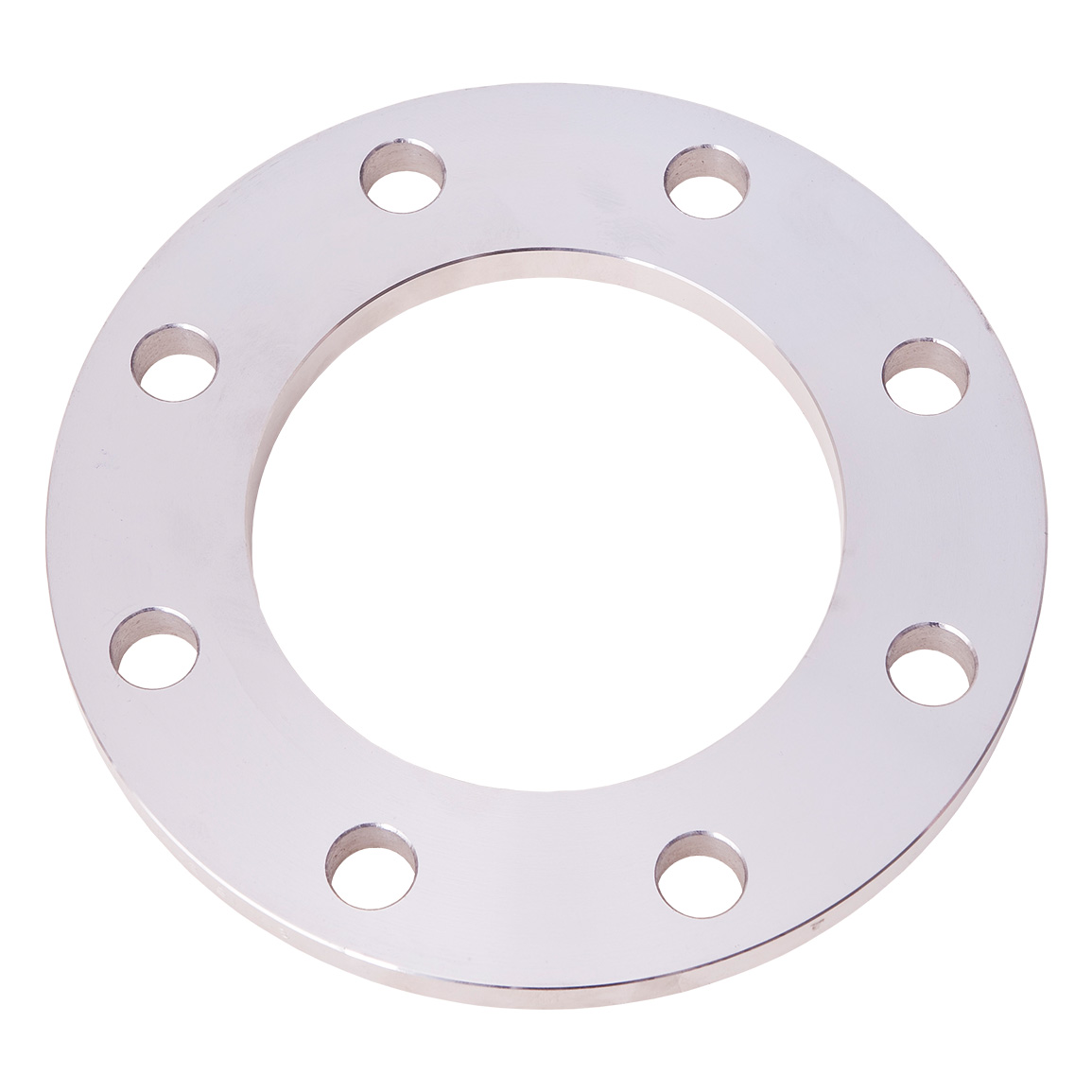

| Qty In Quote | PE Pipe Size (mm) | Code | Flange Size | OD (mm) | PCD (mm) | ID (mm) | TH (mm) | Bolt Holes No x D (mm) | Bolt Size | Weight (kg) |
|---|
|
|
110 | 316BR110D | 4" | 215 | 178 | 128 | 10 | 4 x 18 | M16 | 1.76 |
|
|
125 | 316BR1254D | 4" | 215 | 178 | 140 | 10 | 4 x 18 | M16 | 1.57 |
|
|
160 | 316BR160D | 6" | 280 | 235 | 178 | 13 | 8 x 18 | M16 | 3.54 |
|
|
180 | 316BR180D | 6" | 280 | 235 | 195 | 13 | 8 x 18 | M16 | 3.04 |
|
|
200 | 316BR200D | 8" | 335 | 292 | 235 | 13 | 8 x 18 | M16 | 4.37 |
|
|
225 | 316BR225D | 8" | 335 | 292 | 240 | 13 | 8 x 18 | M16 | 4.18 |
|
|
250 | 316BR250D | 10" | 405 | 356 | 290 | 16 | 8 x 22 | M20 | 7.52 |
|
|
280 | 316BR280D | 10" | 405 | 356 | 300 | 16 | 8 x 22 | M20 | 6.94 |
|
|
315 | 316BR315D | 12" | 455 | 406 | 345 | 19 | 12 x 22 | M20 | 9.65 |
|
|
355 | 316BR355D | 14" | 525 | 470 | 376 | 22 | 12 x 26 | M24 | 17.15 |
|
|
400 | 316BR400D | 16" | 580 | 521 | 430 | 22 | 12 x 26 | M24 | 19.5 |
|
|
450 | 316BR450D | 18" | 640 | 584 | 480 | 25 | 12 x 26 | M24 | 26.43 |
|
|
500 | 316BR500D | 20" | 705 | 641 | 533 | 29 | 16 x 26 | M24 | 36.22 |
|
|
560 | 316BR560D | 22" | 760 | 699 | 590 | 32 | 16 x 30 | M27 | 42.54 |
|
|
630 | 316BR630D | 24" | 825 | 756 | 660 | 32 | 16 x 30 | M27 | 45.61 |
