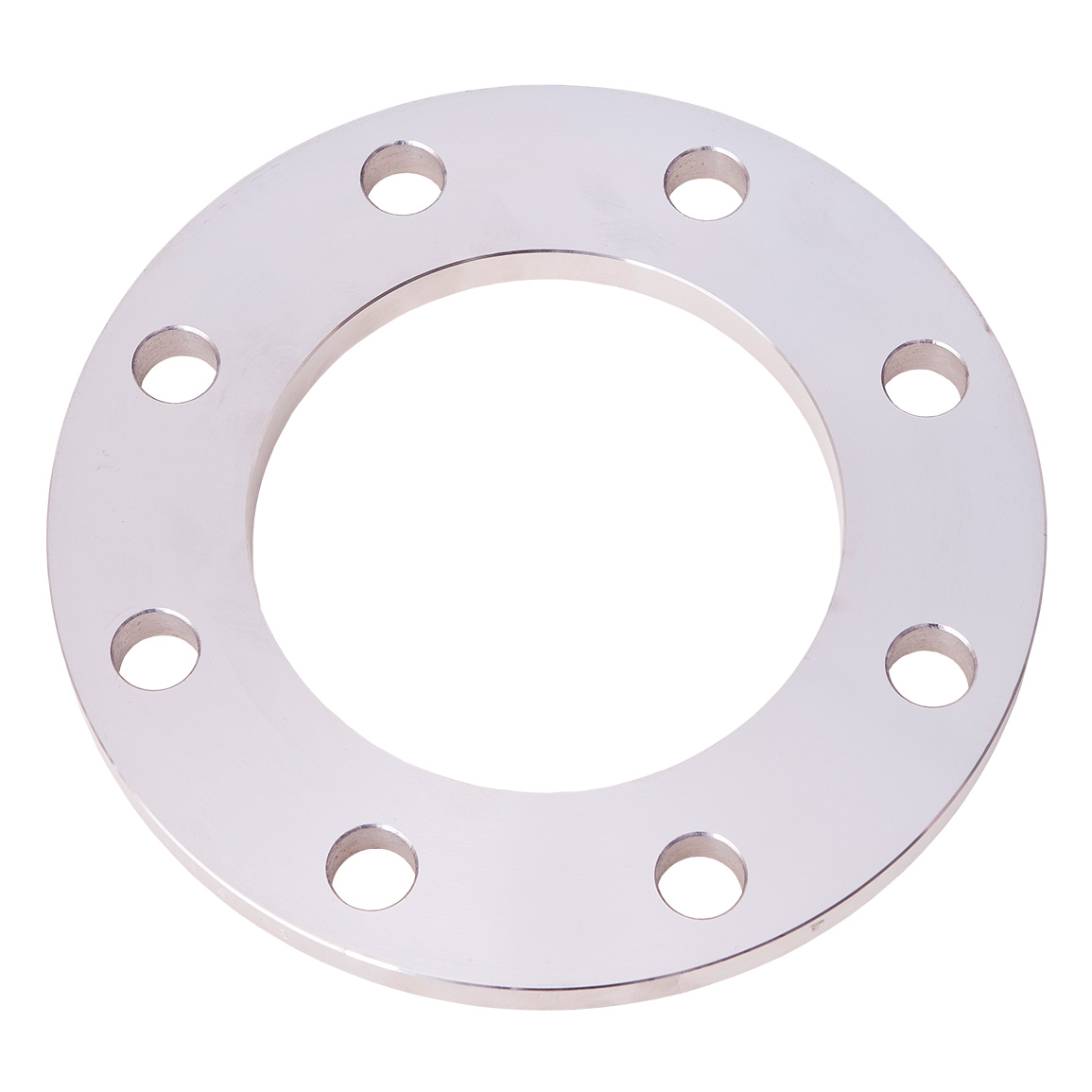

| Qty In Quote | PE Pipe Size (mm) | Code | Flange Size | OD (mm) | PCD (mm) | ID (mm) | TH (mm) | Bolt Holes No x D (mm) | Bolt Size (M) | Weight (kg) |
|---|
|
|
63 | 316BR6316 | 2" | 150 | 114 | 78 | 11 | 4 x 18 | M16 | 1.03 |
|
|
75 | 316BR7516 | 2 1/2" | 165 | 127 | 92 | 11 | 4 x 18 | M16 | 1.19 |
|
|
90 | 316BR9016 | 3" | 185 | 146 | 108 | 11 | 4 x 18 | M16 | 1.45 |
|
|
110 | 316BR11016 | 4" | 215 | 178 | 128 | 13 | 4 x 18 | M16 | 2.29 |
|
|
125 | 316BR12516 | 4" | 215 | 178 | 140 | 13 | 4 x 18 | M16 | 1.93 |
|
|
160 | 316BR16016 | 6" | 280 | 235 | 178 | 13 | 8 x 18 | M16 | 3.54 |
|
|
200 | 316BR20016 | 8" | 335 | 292 | 235 | 19 | 8 x 18 | M16 | 6.39 |
|
|
225 | 316BR22516 | 8" | 335 | 292 | 238 | 19 | 8 x 18 | M16 | 6.12 |
|
|
225 | 316BR225916 | 9" | 370 | 324 | 238 | 19 | 8 x 18 | M16 | 9.12 |
|
|
250 | 316BR25016 | 10" | 405 | 356 | 288 | 19 | 8 x 22 | M20 | 9.22 |
|
|
315 | 316BR31516 | 12" | 455 | 406 | 338 | 23 | 12 x 22 | M20 | 12.64 |
|
|
355 | 316BR35516 | 14" | 525 | 470 | 376 | 30 | 12 x 26 | M24 | 23.81 |
|
|
400 | 316BR40016 | 16" | 580 | 521 | 430 | 30 | 12 x 26 | M24 | 26.58 |
|
|
450 | 316BR45016 | 18" | 640 | 584 | 470 | 30 | 12 x 26 | M24 | 33.48 |
|
|
500 | 316BR50016 | 20" | 705 | 641 | 533 | 38 | 16 x 26 | M24 | 48.1 |
|
|
630 | 316BR63016 | 24" | 825 | 756 | 645 | 48 | 16 x 30 | M27 | 75.28 |
|
|
710 | 316BR71016 | 28" | 910 | 845 | 740 | 56 | 20 x 30 | M27 | 90.85 |
|
|
800 | 316BR80016 | 32" | 1060 | 984 | 843 | 56 | 20 x 36 | M33 | 133.94 |
|
|
900 | 316BR90016 | 36" | 1175 | 1092 | 947 | 66 | 24 x 36 | M33 | 184.65 |
|
|
1000 | 316BR100016 | 40" | 1255 | 1175 | 1050 | 66 | 24 x 36 | M33 | 180.05 |
|
|
1200 | 316BR120016 | 48" | 1490 | 1410 | 1270 | 76 | 32 x 36 | M33 | - |
